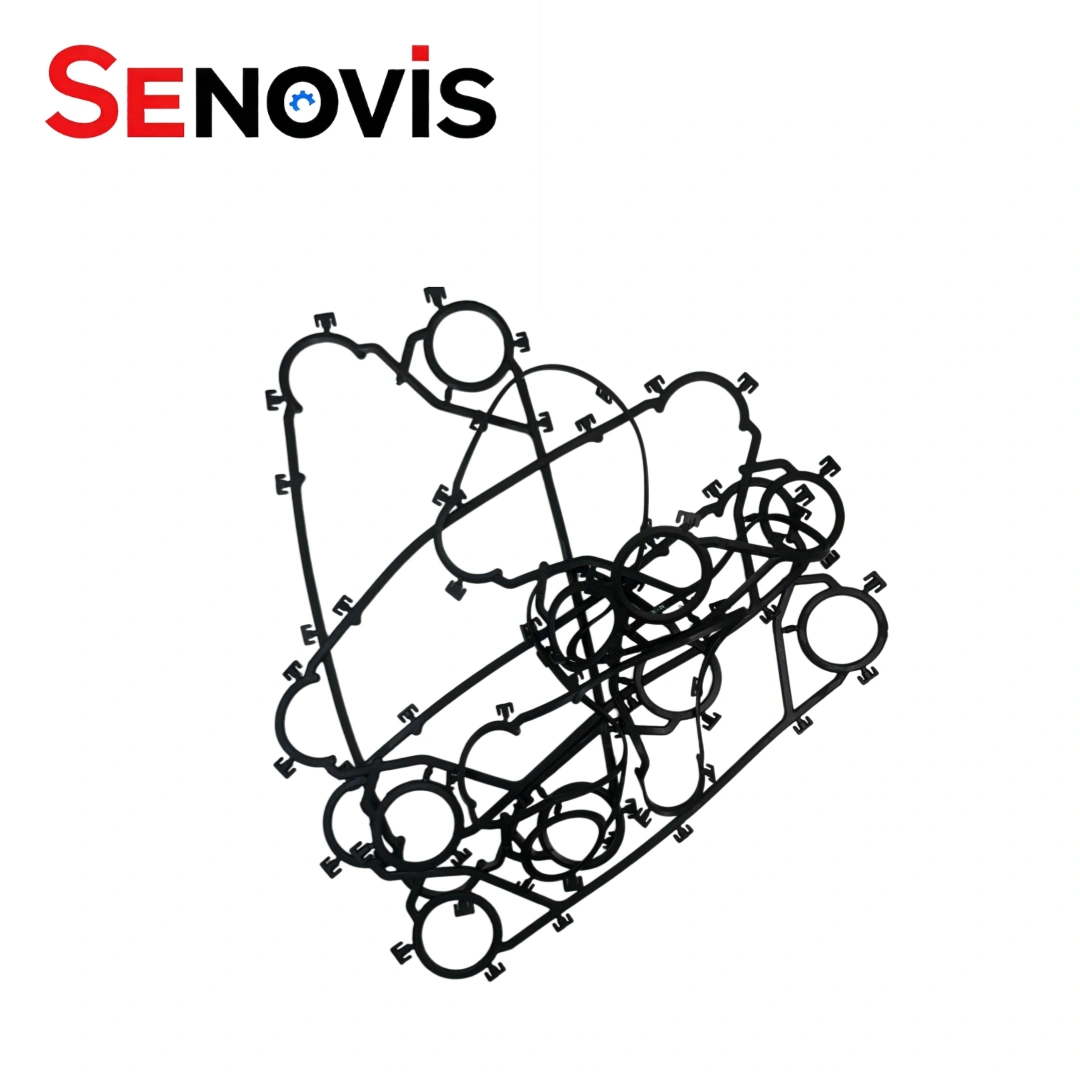

FUNKE FP04 gasket manufactured with black NBR gasket material for plate heat exchanger sealing. — Compatible FUNKE FP04 sealing gasket with black neoprene gasket material options.

FUNKE FP04 Gasket Plate Heat Exchanger Chemical Industry Evaporator HVAC

The Funke FP04 Gasket is a direct replacement for Funke gasketed PHEs, commonly used in funke fp04 plate heat exchanger for oil cooler applications — hydraulic, lubrication and industrial cooling systems.

Available in NBR, EPDM, FKM and CR across the fp04 fp08 fp10 fp14 fp16 series. Replacement plates for funke plate type heat exchangers also available.

FUNKE FP04 PHE Gasket details

PHE Model

FUNKE FP04 Gasket

Keyword

Plate Heat Exchanger Spare Parts Providers

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper,Oil and Gas, Food Industry

Compatible Brands

FUNKE Plate Type Heat Exchanger Parts

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

NBR、EPDM、FKM

Packaging

cardboard box

Custom Services

Support

DESCRIPTION

The Funke FP04 Gasket is a direct replacement for Funke gasketed plate heat exchangers, commonly specified for funke fp04 plate heat exchanger for oil cooler applications — hydraulic systems, lubrication circuits and industrial cooling where gasket condition directly affects fluid containment.
funke fp04 gaskets are available in NBR, EPDM, FKM and CR, covering the material range referenced in the funke fp04 fp08 fp10 fp14 fp16 nbr epdm fkm cr heat exchanger gasket series. Material selection depends on your operating media and temperature — if you’re not sure which compound fits, the system details are usually enough to narrow it down.
Replacement plates for funke plate type heat exchangers are available alongside the gaskets for the same frame, supplied for maintenance, repair and industrial plate type heat exchanger gasket funke fp04 refurbishment requirements.

FUNKE FP04 Gasket Replacement Specification

PHE Model	FUNKE FP04 Evaporator Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

FUNKE FP04 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	FUNKE FP04
Corrugation Depth(mm)	2.1
Port Diameter(mm)	φ30
Chevron Angle	57.5°133°
Corrugation Pitch(mm)	8.3
Equivalent Diameter	4.2
Flow Area(m²)	0.00021
One Plate (m²)	0.04
Port Distance (mm)	*33665**
Dimensions (mm)	*393122**

Actual Product Details

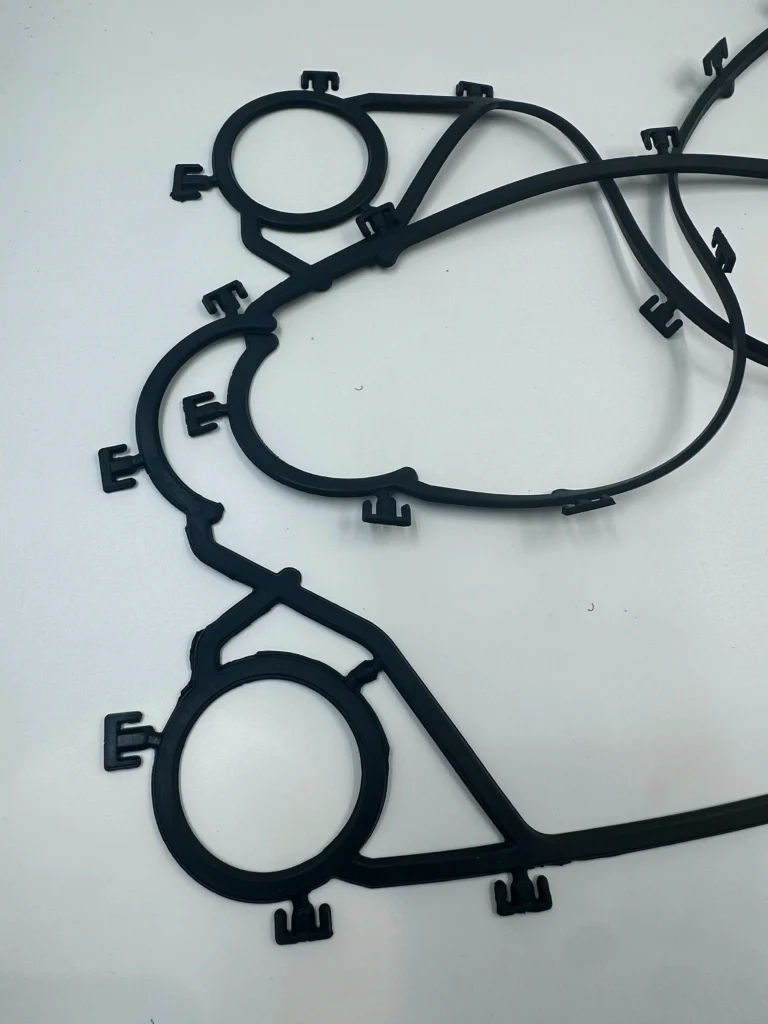

FUNKE FP04 heat exchanger gasket featuring clip-on gasket for plate heat exchanger installation. — Precision molded FUNKE FP04 gasket used as a condenser gasket replacement component.

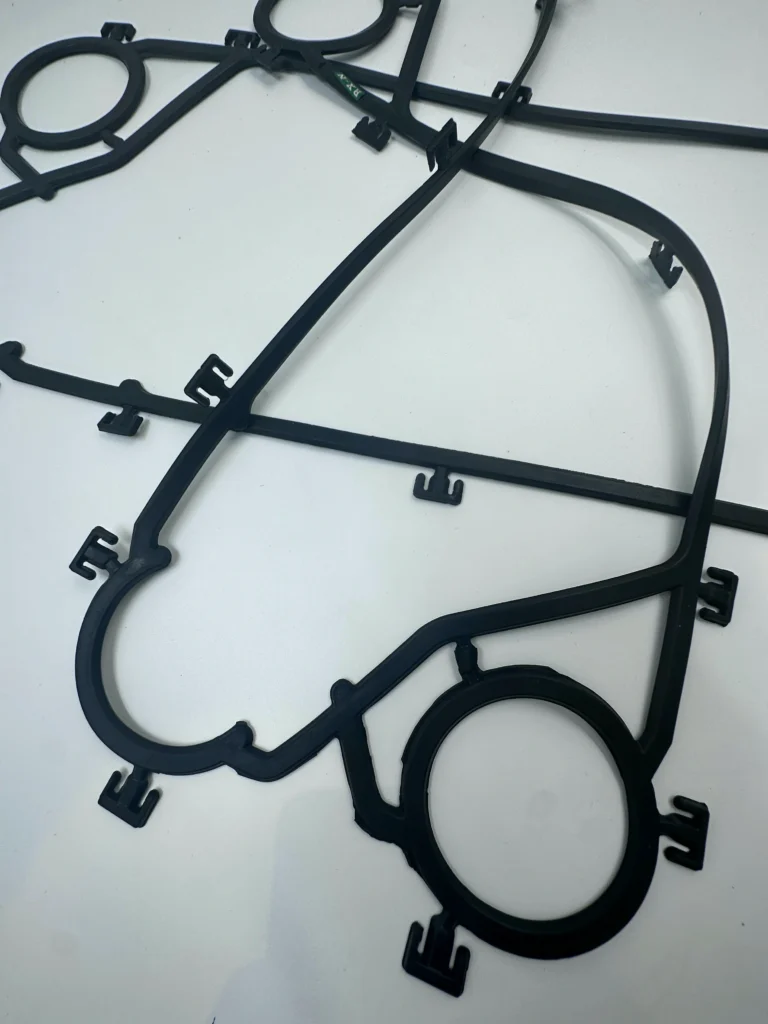

FUNKE FP04 sealing gasket produced for custom neoprene gaskets requirements. — Compatible FUNKE FP04 gasket manufactured with epdm gasket food grade compounds.

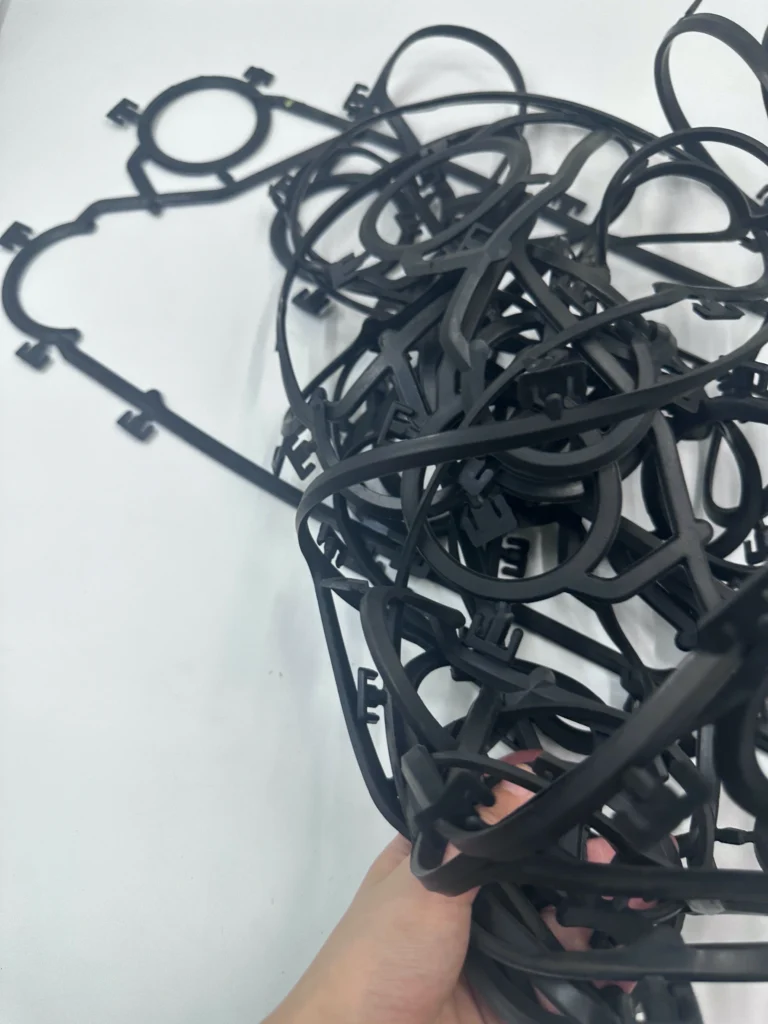

FUNKE FP04 replacement gasket suitable for epdm gasket vs nbr gasket material selection. — High temperature FUNKE FP04 sealing gasket using fkm gasket viton material.

faq

What is the function of a FUNKE FP04 gasket?

The FUNKE FP04 gasket performs three main functions:
Creates sealing between heat exchanger plates
Separates different process fluids
Guides fluid flow through designed channels
The gasket is installed around the plate edge and port areas, forming a reliable sealing structure for gasketed plate heat exchangers.

Which materials are available for FUNKE FP04 Gaskets?

Senovis PHE supplies FUNKE FP04 compatible gaskets in different elastomer materials, including:
NBR (Nitrile)
EPDM
FKM / Viton
HNBR
Special elastomer compounds
Material selection depends on:
Operating media
Temperature range
Pressure conditions
Chemical compatibility
The correct gasket material should be selected according to the actual operating conditions of the plate heat exchanger to ensure reliable sealing performance and service life.

Are FUNKE FP04 Gaskets available from stock?

Many standard FUNKE FP04 gaskets are available from stock for fast dispatch.
After confirming:
Model
Material
Quantity
Fixing type
Senovis PHE can arrange shipment quickly to help reduce equipment downtime.
Special materials such as FKM, HNBR, or customized gasket versions will be confirmed according to specific project requirements and operating conditions.

Do you supply FUNKE FP04 Gaskets to the United States?

Yes. Senovis PHE supplies compatible FUNKE FP04 Gaskets and plate heat exchanger spare parts to customers throughout the United States.
We support:
Industrial maintenance companies
HVAC contractors
Hydraulic equipment service providers
Food processing facilities
Heat exchanger distributors
Shipments can be arranged to major industrial regions including Texas, California, Illinois, Florida, and other states.
Senovis PHE provides suitable gasket solutions for different operating conditions, with material options selected according to application requirements. We can also assist with product confirmation, spare parts matching, and logistics arrangements to help reduce equipment downtime.

Why choose Senovis PHE for FUNKE FP04 Gasket replacement?

Senovis PHE specializes in compatible plate heat exchanger plates, gaskets, and spare parts for industrial maintenance projects.
We provide:
Gasket identification support
Material selection assistance
Part Number verification
Stock availability confirmation
Fast quotations
Worldwide shipping support
Our solutions support distributors, service companies, OEM maintenance providers, and industrial users worldwide.
Senovis PHE helps customers identify suitable replacement components according to equipment models, operating conditions, and application requirements.
