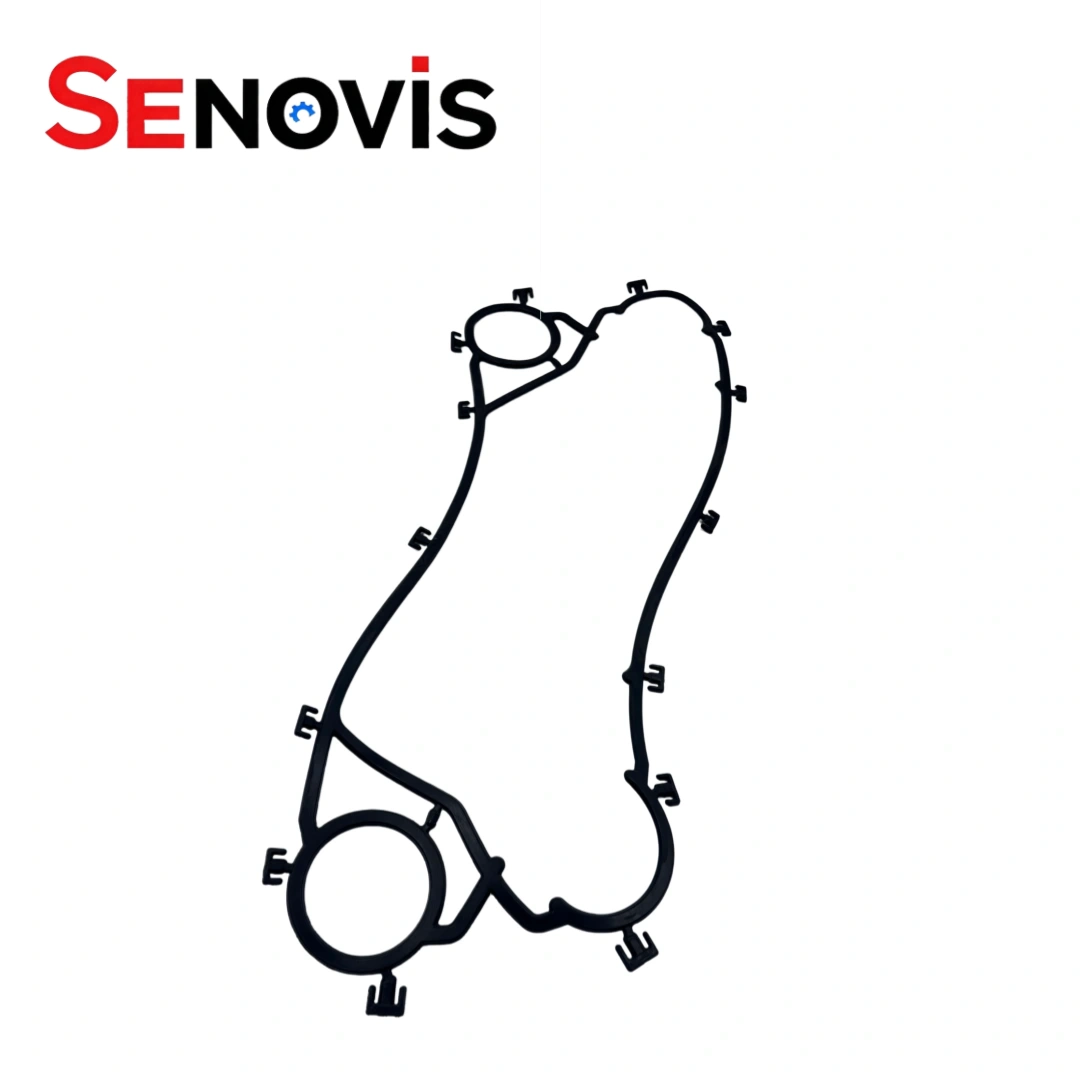

Technical-grade Alfa Laval T20B compatible PHE gasket for high-flow industrial heating systems by Senovis. — Complete T20B series gasket engineered for large-scale plate heat exchanger applications and high thermal load efficiency.

ALFA LAVAL T20BW BFG T20 ALFA LAVAL Heat Exchanger Gasket Replacement

We provide reliable gasket replacement solutions for alfa laval t20 bfg, alfa laval t20b, alfa laval t20bw, and t20 alfa laval plate heat exchangers. These alfa laval gasket products are manufactured to match original plate designs, ensuring proper sealing and stable operation under varying temperature and pressure conditions.

alfa laval T20B details

PHE Model

Alfa Laval T20B PHE Gasket

Keyword

Plate Heat Exchanger Gasket Manufacturer

After-sales Service

Timely after-sales response within 24 hours

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

NBR,Nitrile,EPDM,silicon,VMQ,FKM,FPM,HNBR

After-sales Service

Timely after-sales response within 24 hours

Channel gap

2mm-10mm

DESCRIPTION

For industrial plate heat exchanger maintenance, we supply dependable gasket replacement solutions for alfa laval t20 bfg, alfa laval t20b, alfa laval t20bw, and t20 alfa laval models. These alfa laval gasket components are engineered to align with original plate geometries, ensuring proper sealing performance and stable operation across various temperature and pressure conditions. Designed for routine servicing and system refurbishment, our gaskets help maintain efficient heat transfer while minimizing leakage risks. Suitable for a wide range of applications, they support consistent equipment operation and simplify maintenance procedures for T20 series plate heat exchangers.

Alfa Laval T20B Gasket Replacement Specification

PHE Model	Alfa Laval T20B PHE Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip-on/ Glue/ Glueless
After-sales Service	Timely after-sales response within 24 hours
Channel gap	2mm-10mm
Keyword	Plate Heat Exchanger Gasket Manufacturer
Gasket material	NBR,Nitrile,EPDM,silicon,VMQ,FKM,FPM,HNBR
Design Pressure	0.6MPa~5MPa

Alfa Laval T20B Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval 10
Corrugation Depth(mm)	2
Port Diameter(mm)	φ209
Chevron Angle	70°127°
Corrugation Pitch(mm)	6.75
Equivalent Diameter	4
Flow Area(m²)	0.00116
One Plate (m²)	0.85
Port Distance (mm)	1478*353
Dimensions (mm)	1749*621

Actual Product Details

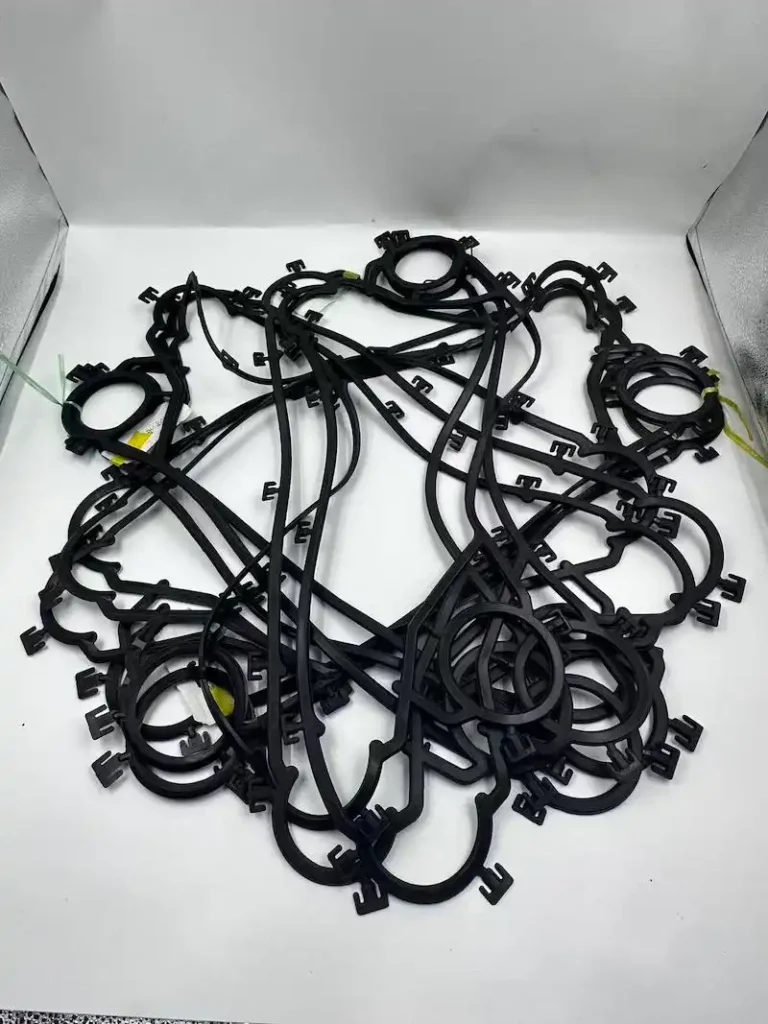

Close-up of Alfa Laval T20B gasket port area showcasing reinforced sealing rings for leak prevention. — Reinforced port design of the T20B gasket, optimized for balanced fluid distribution and reduced hydraulic turbulence.

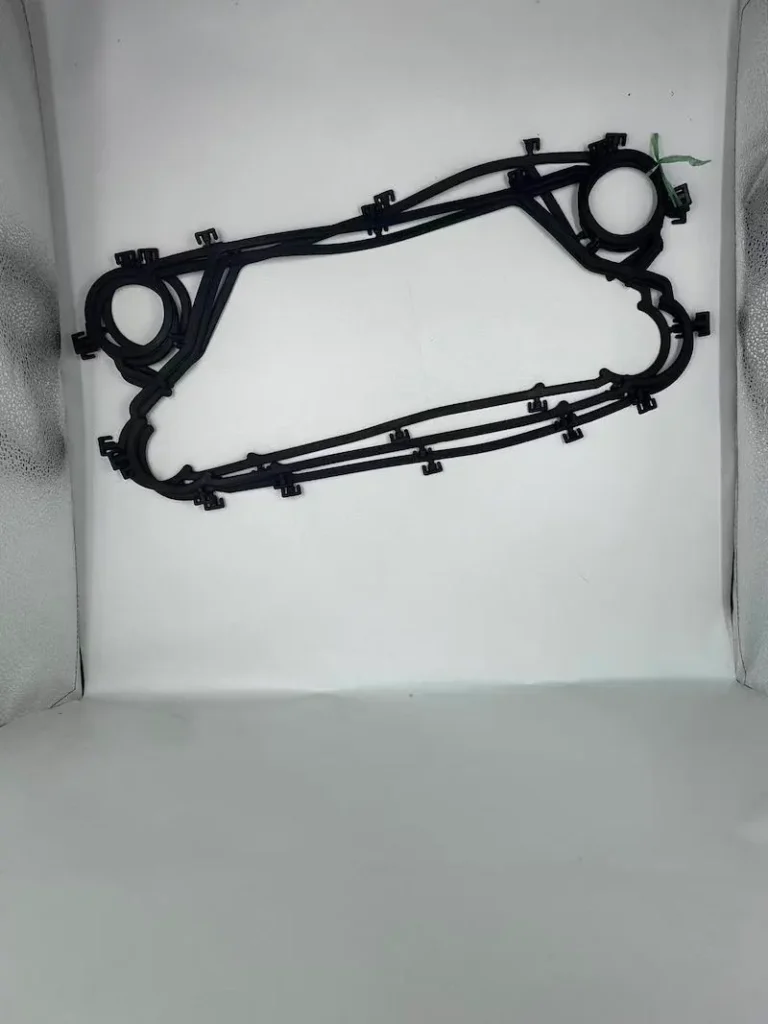

T20B High-Pressure Port Series — Precision clip-on mechanism of T20B series gaskets, ensuring exact alignment during complex plate pack assembly.

Workshop of Plate Heat Exchanger Factory

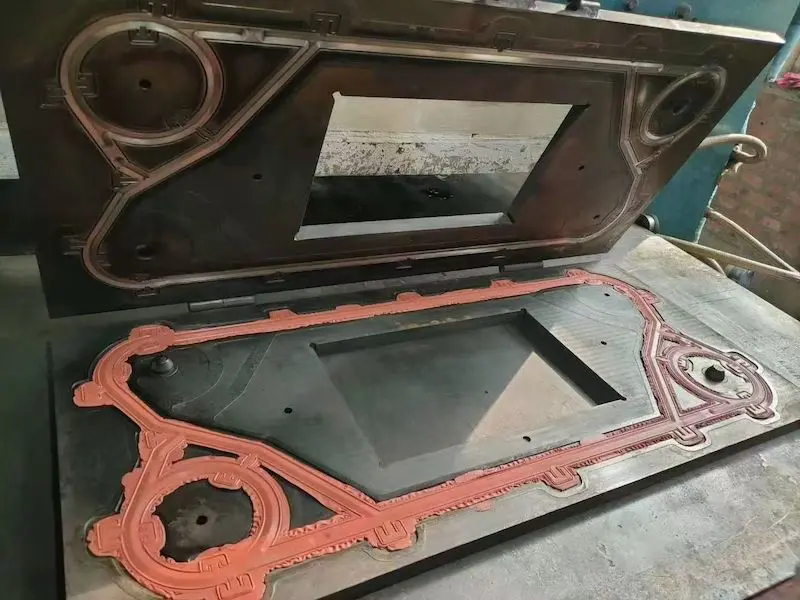

Factory-certified Alfa Laval T20B plate heat exchanger gasket production and inspection at Senovis facility. — Quality-inspected T20B gaskets ready for global shipping, ensuring professional-grade sealing for diverse HVAC and marine tasks.

faq

u003cstrongu003eHow to test the quality of your product?u003c/strongu003e

Samples are available for quality test; Or you can also pay a visit to our factory to know more about our products.

Is there after-sales service of your products?

Yes. If any problem about the product, pls just feel free to contact us at any time.

Are you factory?

Yes,we are one of the largest heat exchanger factory in China.

What information needed if I want a quotation?

Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Heat Transfer Area, Liquid Flow and Temperature in and out , Quantity, or any requirements in size.
