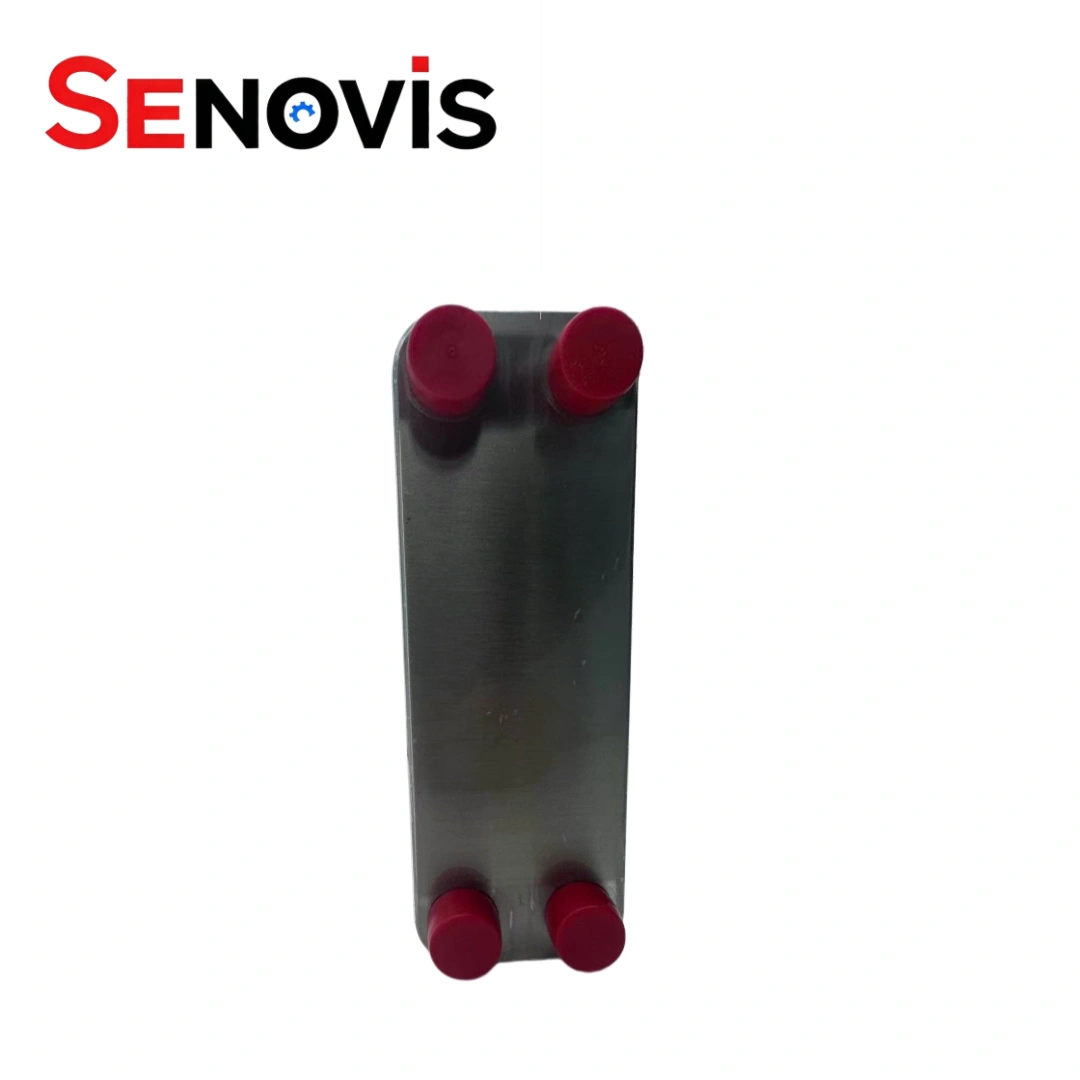

SWEP B80 brazed plate heat exchanger BPHE industrial unit exterior — SWEP B80 brazed plate heat exchanger for industrial heat transfer applications.

Swep B80HX60 B80HX50 B80HX20 Refrigerant Brazed Plate Heat Exchanger BPHE

As a BPHE factory, we produce the SWEP B80 Brazed Plate Heat Exchanger for HVAC and industrial heat transfer systems. Designed for efficient thermal performance and compact installation. Our solutions support system replacement and integration, fully compatible with Alfa Laval, APV, TRANTER, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka.

SWEP B80 details

BPHE Model

SWEP B80 BPHE

Keyword

Swep Heat Exchanger

Applicable Industries

Industry Cooling

Material

SS304/SS316/COPPER

Feature

High Heat Transfer

Certification

CE , UL , ISO9001, ISO14001

Designed Temperature

-196℃ ~ 225℃

Capacity

10 ~ 80 KW

Other Models

B5, B8, B10, B12, B15, B16, B20, B25, B28, B35, B50, B60, B80, B120, V80, V120

DESCRIPTION

As a specialized manufacturer of brazed plate heat exchangers and related components, we produce reliable thermal solutions for industrial and HVAC applications. The SWEP B80 Brazed Plate Heat Exchanger (BPHE) is designed with advanced plate configuration to support efficient heat transfer and stable performance under varying operating conditions. Its compact structure allows flexible installation in cooling, heating, and process systems where consistent thermal exchange is required. Each unit is manufactured with precise brazing technology and strict dimensional control to ensure dependable operation.

SWEP B80 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	SWEP B80 BPHE
Keyword	Swep Heat Exchanger
Plate Number	N
Thickness A (mm)	2.29 * N + 10
Dimension LWH (mm)	526 * 119
Center Distance (mm)	466 * 59
Weight (kg)	0.21 * N + 2.10
Volume (L) Q1Q2 Side / Q3Q4 Side	0.095 * (N-2)/2 / 0.095 * N/2
Designed Pressure	31 bar / 45 bar (Pressure versions vary)
Designed Temperature	-196℃ ~ 225℃
Slad Materials	316 Stainless Steel
Capacity	10 ~ 80 KW

SWEP B Series Replacement Cross Reference

SWEP Model	Typical Application	Equivalent Alfa Laval	Equivalent Danfoss	Kaori Equivalent
B3	Micro HVAC / heat pumps	CB14	XB05	K040
B5	Small HVAC systems	CB18	XB06	K060
B8	Residential HVAC	CB20	XB10	K100
B10	Light commercial HVAC	CB20 / CB26	XB10 / XB12	K100 / K200
B12	Heat pumps / chillers	CB26	XB12	K200
B25	Commercial HVAC	CB30 / CB50	XB37	K300
B35	Medium industrial	CB50	XB37 / XB51	K500
B50	Industrial HVAC	CB60	XB51 / XB60	K500 / K800
B65	Heavy duty systems	CB60 / CB110	XB60	Custom
B80	Large industrial	CB110	XB100	Custom

Actual Product Details

close-up SWEP B8 BPHE plate pattern chevron structure brazed heat exchanger internal design — Detailed chevron plate geometry of SWEP B8 BPHE for enhanced heat transfer efficiency.

SWEP B8 BPHE connection ports and brazed plate heat exchanger assembly structure detail view — Connection interface and compact assembly design of SWEP B8 brazed plate heat exchanger.

Workshop of Plate Heat Exchanger Factory

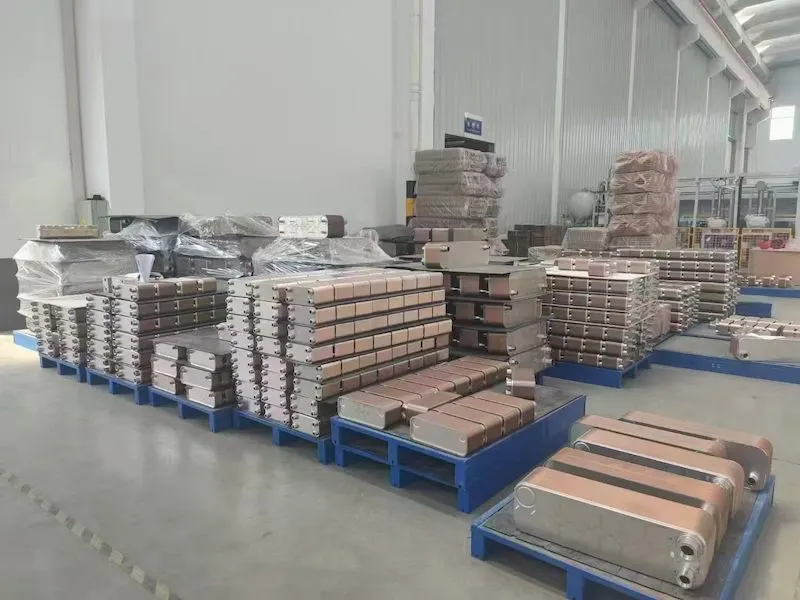

SWEP B80 BPHE production line assembly and quality inspection process — Factory production process of brazed plate heat exchangers with quality control.

faq

Can we print our logo/website/company name on products?

Yes.

What’s the lead time for regular order?

7-15 days for order quantity lower than 1000pcs

What’s the lead time for regular order?

7-15 days for order quantity lower than 1000pcs

Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
