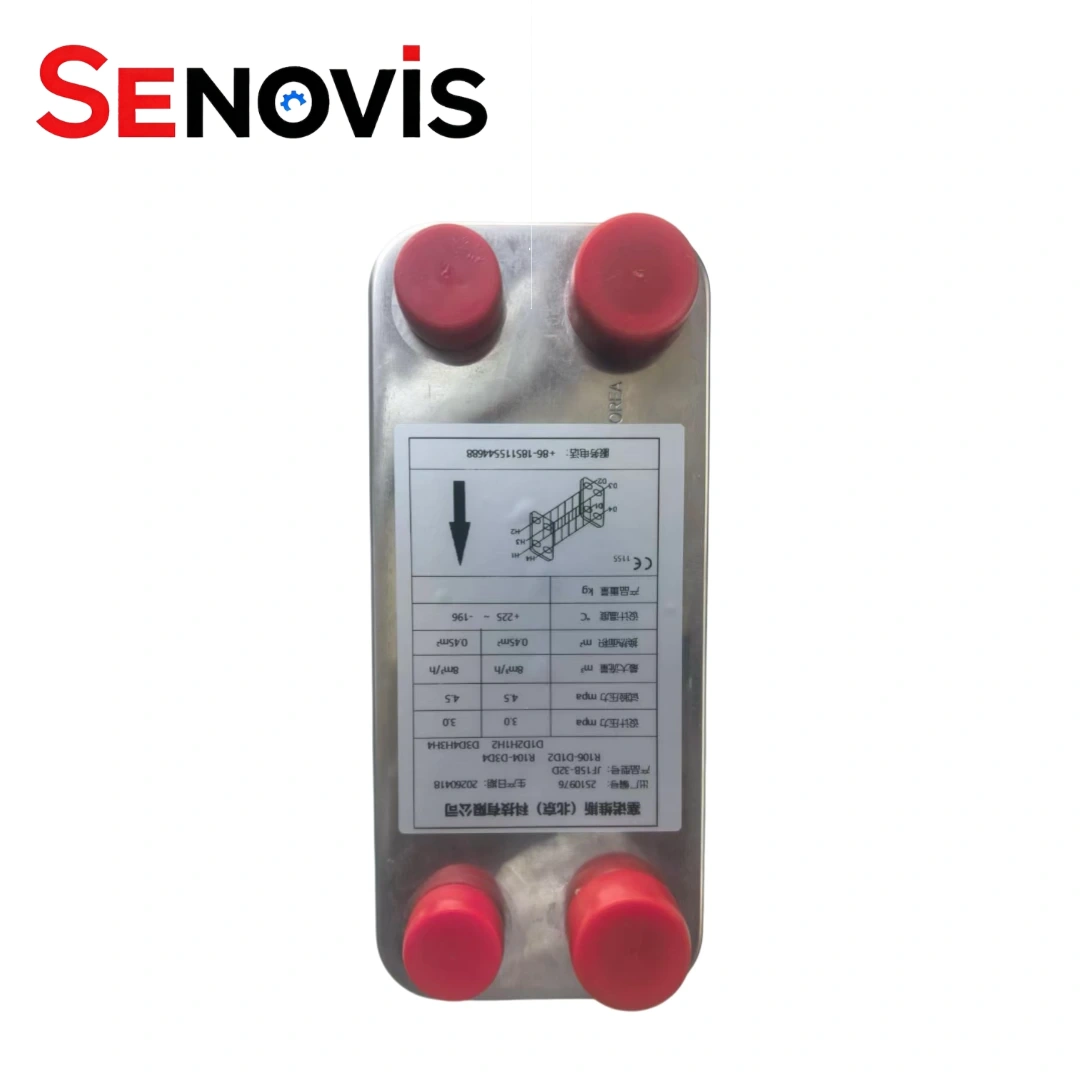

Replacement brazed plate heat exchanger compatible with Alfa Laval CB16 — Compatible substitute part for **Alfa Laval** CB16 heating exchange equipment

Brazed Plate Heat Exchanger Alfa Laval CB16 12H 14H 20H CBH16

BPHE Model

Alfa Laval CB16/alfa laval cb16 cbh16/alfa laval cb16-12h/alfa laval cb16 20h/alfa laval cb16 14h

Place of Origin

China

Stock & Shipment

In stock | Fast delivery

Minimum Order Quantity

1 pieces

Price

Negotiation

Packaging Details

Standard Export Packaging

Alfa Laval CB16 BPHE details

BPHE Model

Alfa Laval CB16

Keyword

Brazed Heat Exchanger Alfa Laval

Plate Quantity Range

4 – 60

Maximum Flow Rate

4.1 m³/h

Capacity

2 ~ 15 KW

Other Alfa Laval BPHE

CB10, CB14, CB16, CB18, CB20, CB24，CB27, CB30, CBM30, CB40, CB52, CB60, CB62, CB65，CB110, CBM110, CB112, CB200, CBM200, CB210, CB300, CB400, CBM400, CB410, CB540

DESCRIPTION

The Alfa Laval CB16 brazed plate heat exchanger is widely used in HVAC, refrigeration, heat pump, and industrial cooling systems requiring compact thermal transfer performance. Models such as the Alfa Laval CB16, CBH16, CB16-12H, CB16-14H, and CB16-20H are commonly selected for replacement, servicing, and maintenance applications where installation space and stable heat exchange efficiency are important.

Manufactured with stainless steel plates and copper or nickel brazing options, the CB16 series is suitable for water heating, refrigerant cooling, heat recovery, and evaporator duties under different operating conditions.

specification

Alfa Laval Brazed Plate Heat Exchanger Replacemnet	Alfa Laval CB16
Keyword	Alfa Laval BPHE
Plate Number	N(number of plates)
Thickness A (mm)	2.11 * N +7.0
Dimension LWH (mm)	208 * 74
Center Distance (mm)	172 * 38
Weight (kg)	0.046 * N + 0.33
Volume (L) Q1Q2 Side / Q3Q4 Side	0.024 * (N-2)/2 / 0.024 * N/2
Designed Pressure	32 bar / 40 bar (Pressure versions vary)
Designed Temperature	-196℃ ~ 225℃
Slad Materials	316 Stainless Steel
Capacity	2 ~ 15 KW

Alfa Laval Brazed Plate Heat Exchanger Catalogue

Size Range	Specific Model Names (Including Next-Gen & High-Pressure Variants)	Core & Key Applications
Micro & Small Sizes	CB10, CB14, CB16, CB18, CB20, CB24 (High-Pressure: `CBH16`, `CBH18`; Double-Wall: `CB18DW`)	Residential & Light Commercial HVAC: Gas-fired wall-hung boilers, domestic water heaters, and low-capacity air-source heat pumps. Precision Industrial Cooling: Industrial laser cooling, CNC machine spindle oil cooling, and electronic component cooling. Automotive & Specialized Equipment: Transmission oil coolers, hydraulic oil cooling for construction machinery. Special Safety Applications: `DW` (Double-Wall) models are used for domestic tap water heating to prevent cross-contamination.
Medium Sizes	CB27, CB30, CBM30, CB40, CB52, CB60, CB62, CB65 (High-Pressure: `CBH30`, `CBH52`, `CBK30`, `CBK52`; Double-Wall: `CB52DW`)	Commercial Buildings & HVAC: Pressure interceptors for high-rise buildings, underfloor heating water systems, and swimming pool constant temperature systems. Medium Refrigeration Systems: Small-to-medium air-cooled/water-cooled chillers, and precision computer room air conditioning (CRAC) units. Hydraulic & Industrial Lubrication: Injection molding machine hydraulics, hydraulic power units (HPUs), gearboxes, and lube oil cooling for large compressors. Wind Power Generation: Lube oil and coolant heat exchangers for wind turbine nacelles.
Large & High-Flow Sizes	CB110, CBM110, CB112, CB200, CBM200, CB210, CB300, CB400, CBM400, CB410, CB540 (High-Pressure: `CBH112`; Double-Wall: `CB112DW`)	District Energy & Heating: District heating network (DHN) substations and central heating units for commercial complexes. Large Central Air Conditioning: Auxiliary heat exchangers, condensers, or evaporators (asymmetric channel setups) for centrifugal and screw chillers. Heavy Industry & Data Centers: Indirect free cooling systems for data centers, chemical process fluid cooling, and steel mill cooling water systems. Marine & Offshore: Marine diesel engine cooling, and central fresh water/seawater cooling systems.
