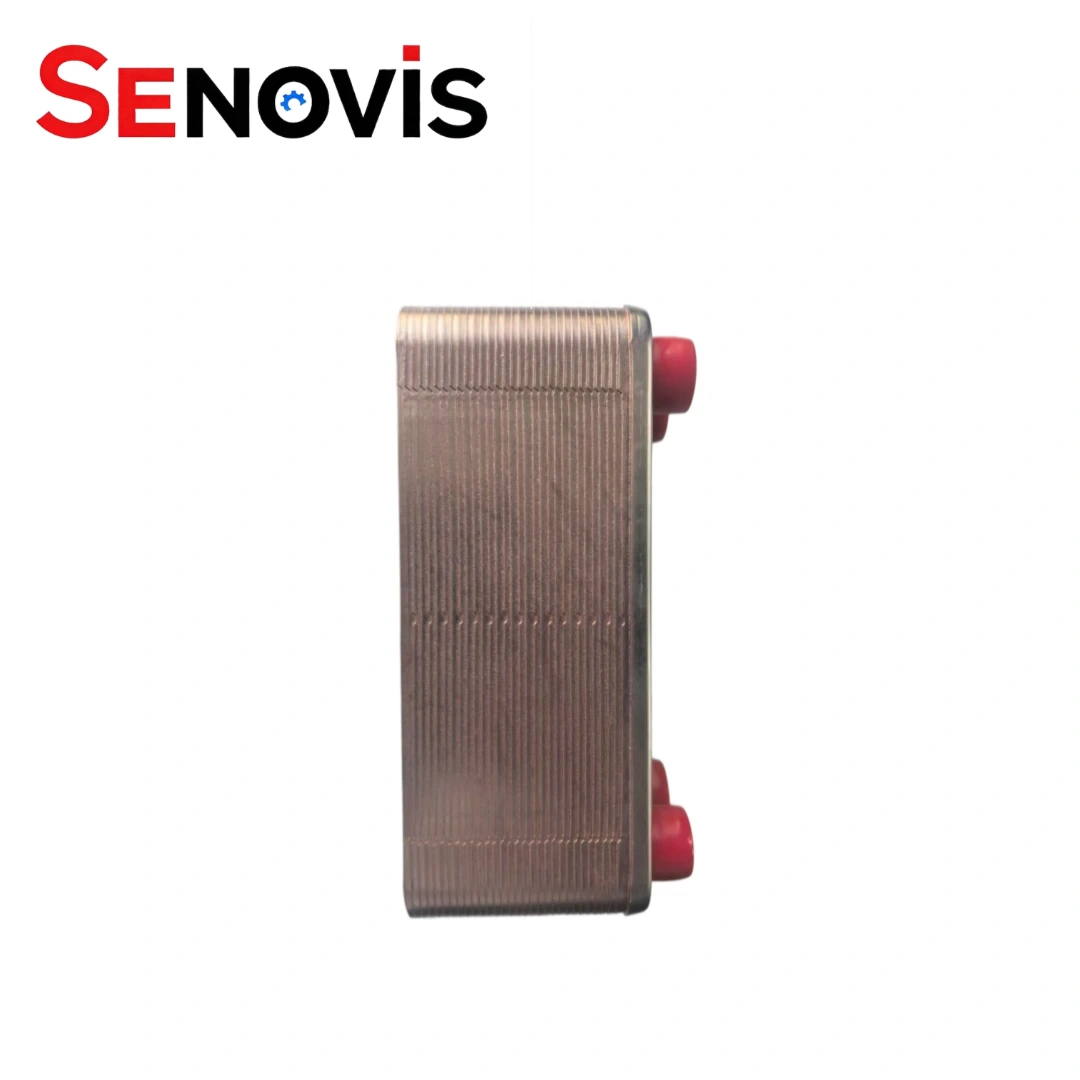

Alfa Laval CB10 14h 16h 20h Copper Brazed Plate Heat Exchanger BPHE

Alfa Laval Brazed Plate Exchanger Replacemnet	Alfa Laval CB10 Brazed Plate Heat Exchanger Manufacturers
Keyword	Alfa Laval Brazed Plate Heat Exchanger BPHE
Plate Number	4–60 Plates
Thickness A (mm)	7 + (2.16 × n) mm
Dimension LWH (mm)	190 × 73 × A mm
Center Distance (mm)	40 mm
Weight (kg)	0.13 + (0.04 × n) kg
Volume (L) Q1Q2 Side / Q3Q4 Side	0.027 L / 0.022 L per channel
Designed Pressure	Max 30 bar (depending on version)
Designed Temperature	-196°C ~ +200°C
Slad Materials	Stainless Steel 316 / Copper Brazing
Capacity	3–8 kW

Alfa Laval CB10 – How It Compares

CB10 vs. Gasketed Plate Heat Exchanger

The CB10 brazed plate heat exchanger uses a compact brazed structure without gaskets, making it suitable for installations with limited space and stable operating conditions. Compared with gasketed plate heat exchangers, the CB10 requires less routine maintenance because there are no gaskets to replace or plates to retighten.

Gasketed plate heat exchangers are more suitable for systems requiring regular inspection, manual cleaning, or future capacity adjustment. For applications involving fouling media, variable loads, or frequent servicing, gasketed designs provide easier maintenance access.

---

CB10 vs. Shell & Tube Heat Exchanger

Compared with shell and tube heat exchangers, the CB10 offers higher heat transfer efficiency in a much smaller footprint. It is commonly used in HVAC systems, refrigeration units, heat pumps, and compact industrial cooling equipment where installation space is limited.

Shell and tube heat exchangers are generally preferred for dirty fluids or applications containing larger particles, because they are easier to mechanically clean and more tolerant of contaminated media.

---

CB10 vs. Larger CB Series Models

Within the brazed plate heat exchanger range, the CB10 is typically selected for small to medium heating and cooling duties. Larger models such as the CB16 and CB26 are designed for higher flow rates and larger thermal loads.

For systems expecting future expansion or higher cooling capacity, selecting a larger CB model may provide better long-term operating flexibility.

---

Typical Applications of CB10

The CB10 is commonly used in:

• HVAC systems
• Refrigeration equipment
• Heat pump systems
• Oil cooling applications
• Industrial heating and cooling systems
• Refrigerant evaporator circuits

It is best suited for clean media and stable operating conditions where compact installation size and reduced maintenance are important.

Alfa Laval Brazed Type Heat Exchanger Catalogue

Size Range	Specific Model Names (Including Next-Gen & High-Pressure Variants)
Micro & Small Sizes	CB10, CB14, CB16, CB18, CB20, CB24 (High-Pressure: CBH16, CBH18; Double-Wall: CB18DW)
Medium Sizes	CB27, CB30, CBM30, CB40, CB52, CB60, CB62, CB65 (High-Pressure: CBH30, CBH52, CBK30, CBK52; Double-Wall: CB52DW)
Large & High-Flow Sizes	CB110, CBM110, CB112, CB200, CBM200, CB210, CB300, CB400, CBM400, CB410, CB540 (High-Pressure: CBH112; Double-Wall: CB112DW)

Direct Contact Channels:

---

Reduce your maintenance costs with SENOVIS PHE ! As a specialized factory for GPHE, BPHE, plates, and gaskets, we offer 100% interchangeable solutions for Alfa Laval, APV, Tranter, Sondex, GEA, and more. Click “Contact Us” to request a quick quote and premium catalog now!
