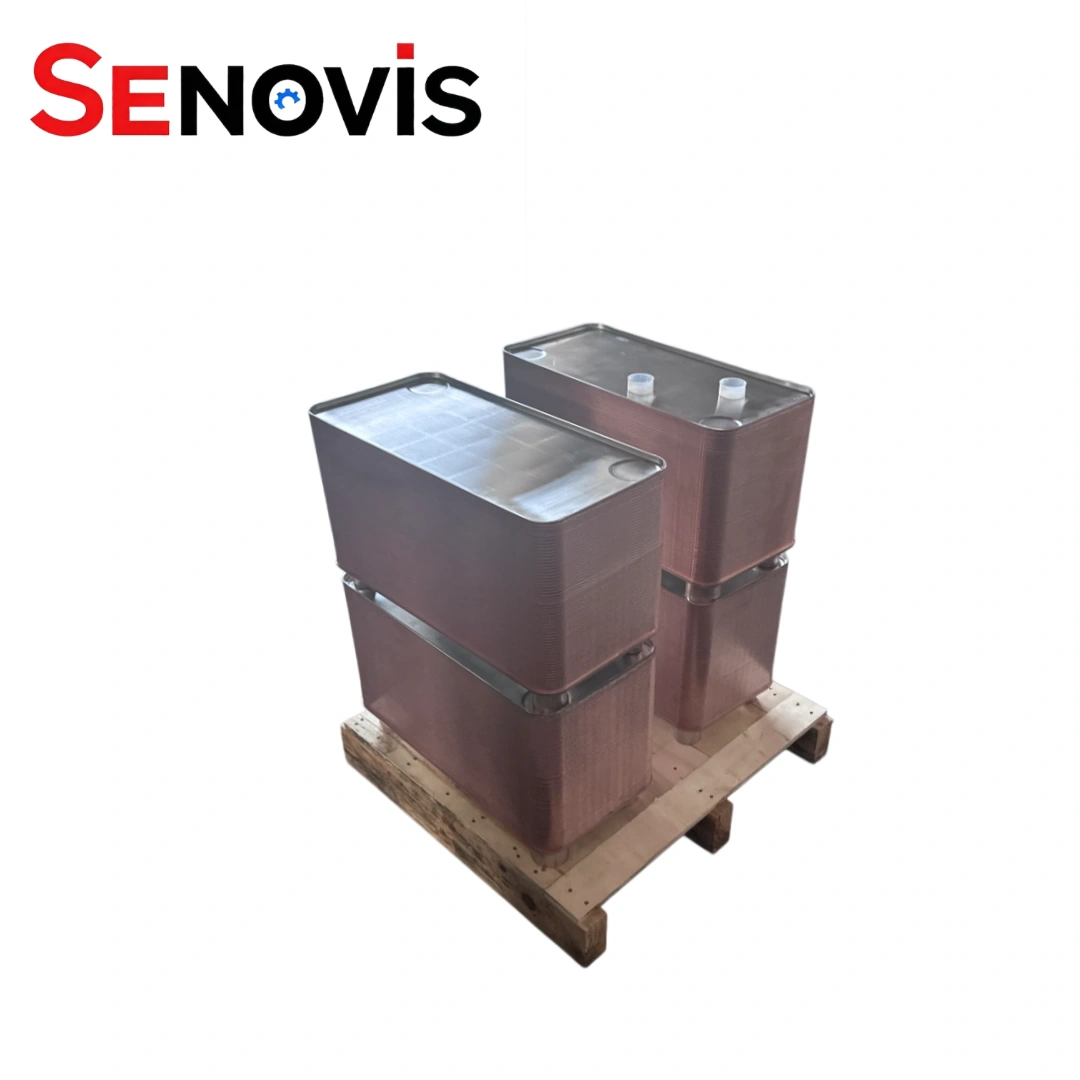

Compatible Alfa Laval AC30 brazed plate heat exchanger for heat pump, HVAC and refrigeration systems
Reliable replacement solution for Alfa Laval AC30 with compact design and efficient heat transfer performance.

ALFA LAVAL AC30 Brazed Plate Heat Exchanger for European Heat Pump Systems

BPHE Model

ALFA LAVAL AC30

Payment Method

T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card

Stock & Shipment

In stock | Fast delivery

MQQ

1 pieces

Price

Negotiation

Packaging Details

Standard Export Packaging

Alfa Laval AC30 BPHE details

Alfa Plate Heat Exchanger Model

Alfa Laval AC30 Brazed PHE

Keyword

Alpha Plate Heat Exchanger

Plate Quantity Range

10–120 Plates

Material

SS304/SS316/COPPER

Capacity

Up to 70 kW

Connection Size

1″ BSP (Typical)

Maximum Flow Rate

Up to 8.8 m³/h

Refrigerants

R32, R134a, R407C, R410A, HFC, HFO

Applications

Heat Pump, Chiller, Air Conditioning, Refrigeration, Condenser, Evaporator

DESCRIPTION

The Alfa Laval AC30EQ / ACH30EQ is a compact brazed plate heat exchanger designed for efficient heat transfer in cooling and refrigeration applications where reliable thermal performance is essential.

As a Brazed plate heat exchanger with single circuit for AC, it is commonly used in condensers, evaporators, heat pumps, and chilled water systems.

The Alfa Laval plate heat exchanger AC30-100EQ is frequently selected for equipment replacement, maintenance, and OEM projects requiring consistent heat exchange performance.

Compared with AC16, ACH16, the AC30 platform is suitable for applications requiring higher thermal capacity, while larger systems may adopt the Alfa Laval AC540 high capacity cooling solution.

At Senovis PHE, we manufacture replacement solutions for AC series plate heat exchangers, serving customers in Air conditioning and chillers, HVAC cooling, and Commercial refrigeration applications worldwide.

specification

MODELAlfa Laval AC30
KeywordBrazed Plate Heat Exchanger, BPHE, Heat Pump Heat Exchanger, Chiller Heat Exchanger, HVAC Heat Exchanger, Refrigeration Heat Exchanger
Plate Number10–120 Plates
Thickness A (mm)10 + (2.4 × n) mm (n = number of heat transfer plates)
Dimension LWH (mm)525 × 111 × A mm
Center Distance (mm)50 mm / 435 mm
Weight (kg)0.9 + (0.12 × n) kg (Approx.)
Volume (L) Q1Q2 Side / Q3Q4 Side0.028 L / 0.028 L per channel
Designed PressureMax. 32 bar (AC30) / Max. 45 bar (ACH30)
Designed Temperature-50°C ~ +150°C
Plate MaterialsStainless Steel 316L / Copper Brazing
CapacityUp to 70 kW (Depending on operating conditions and plate configuration)

Alfa Laval AC30 Applications/Features

Key Applications

The AC30 is widely used in:

  • Air Conditioning Systems
  • Heat Pump Systems
  • Chillers
  • Refrigeration Equipment
  • Heat Recovery Systems
  • Liquid Cooling Applications

It is suitable for use as:

  • Evaporator
  • Condenser
  • Economizer
  • Liquid-to-Liquid Heat Exchanger

Compatible Refrigerants

The AC30 is compatible with a wide range of refrigerants, including:

  • HFC Refrigerants
  • HFO Refrigerants
  • Natural Refrigerants
  • R407C
  • R410A
  • Other common refrigerants depending on system design

Design Features

Low refrigerant charge

Compact and lightweight construction

Copper brazed design without gaskets

High heat transfer efficiency

Excellent pressure resistance

Integrated refrigerant distribution system for improved performance

Factory pressure and leak tested

Maintenance-free operation

Actual Product Details

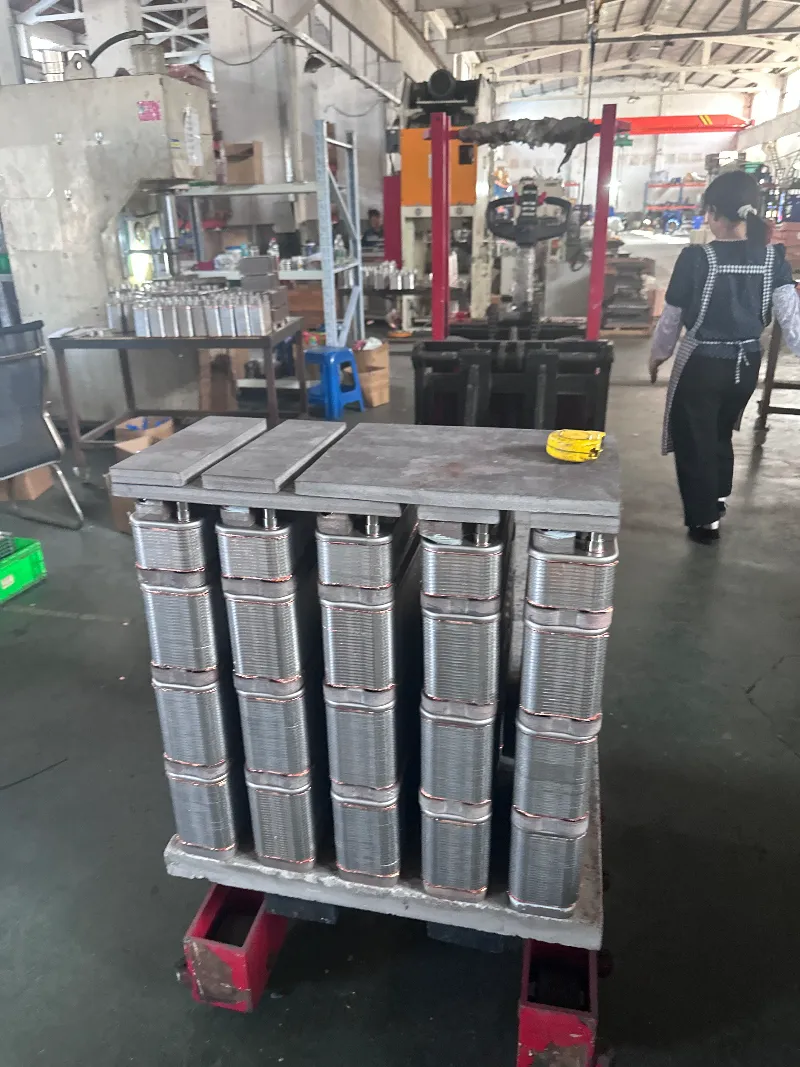

Quality inspection of brazed plate heat exchangers before shipment
Every heat exchanger is inspected before packaging and delivery.

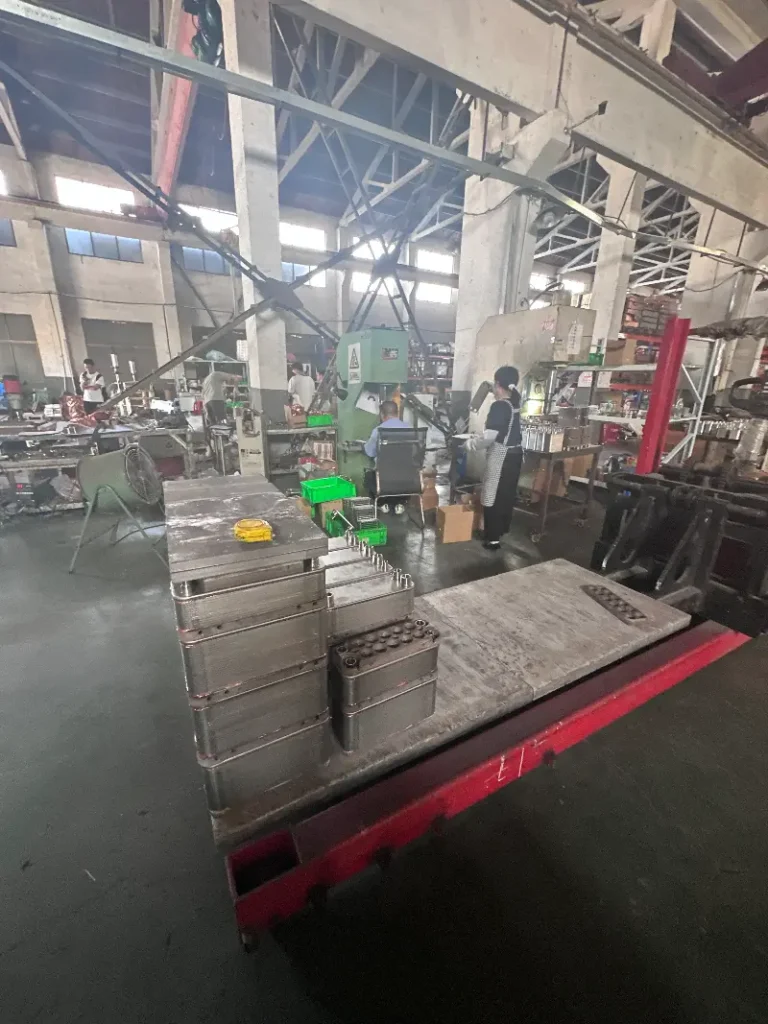

SENOVIS brazed plate heat exchanger manufacturing workshop
Modern production facilities ensure consistent manufacturing quality.

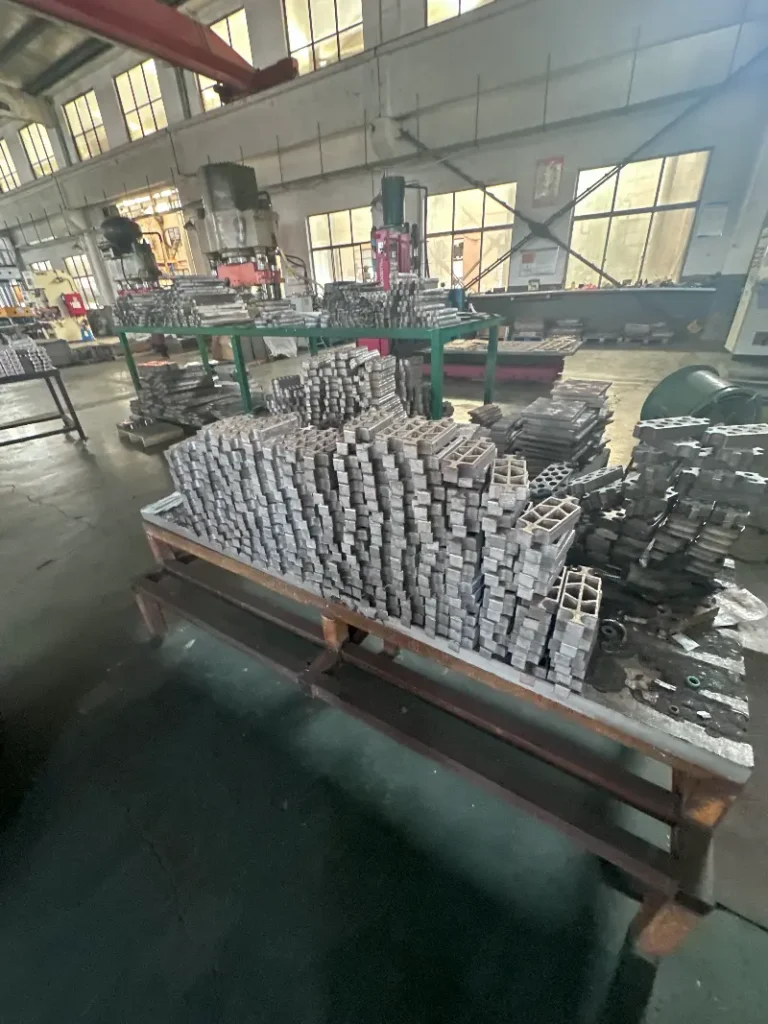

Brazed plate heat exchanger production process at SENOVIS factory
Precision manufacturing from stainless steel forming to final brazing.

faq

Compatible Alfa Laval AC Series Models


Compatible replacement for:

  • Alfa Laval AC16
  • Alfa Laval AC20
  • Alfa Laval AC24
  • Alfa Laval AC30
  • Alfa Laval AC50
  • Alfa Laval AC60
  • Alfa Laval AC65
  • Alfa Laval AC72
  • Alfa Laval AC73
  • Alfa Laval AC74
  • Alfa Laval AC112
  • Alfa Laval AC220
  • Alfa Laval AC230
  • Alfa Laval AC232
  • Alfa Laval AC240
  • Alfa Laval AC500
  • Alfa Laval AC502
  • Alfa Laval AC540
  • Alfa Laval AC900
  • Alfa Laval AC1000

Need another AC model? Contact SENOVIS for a fast quotation and technical support.
