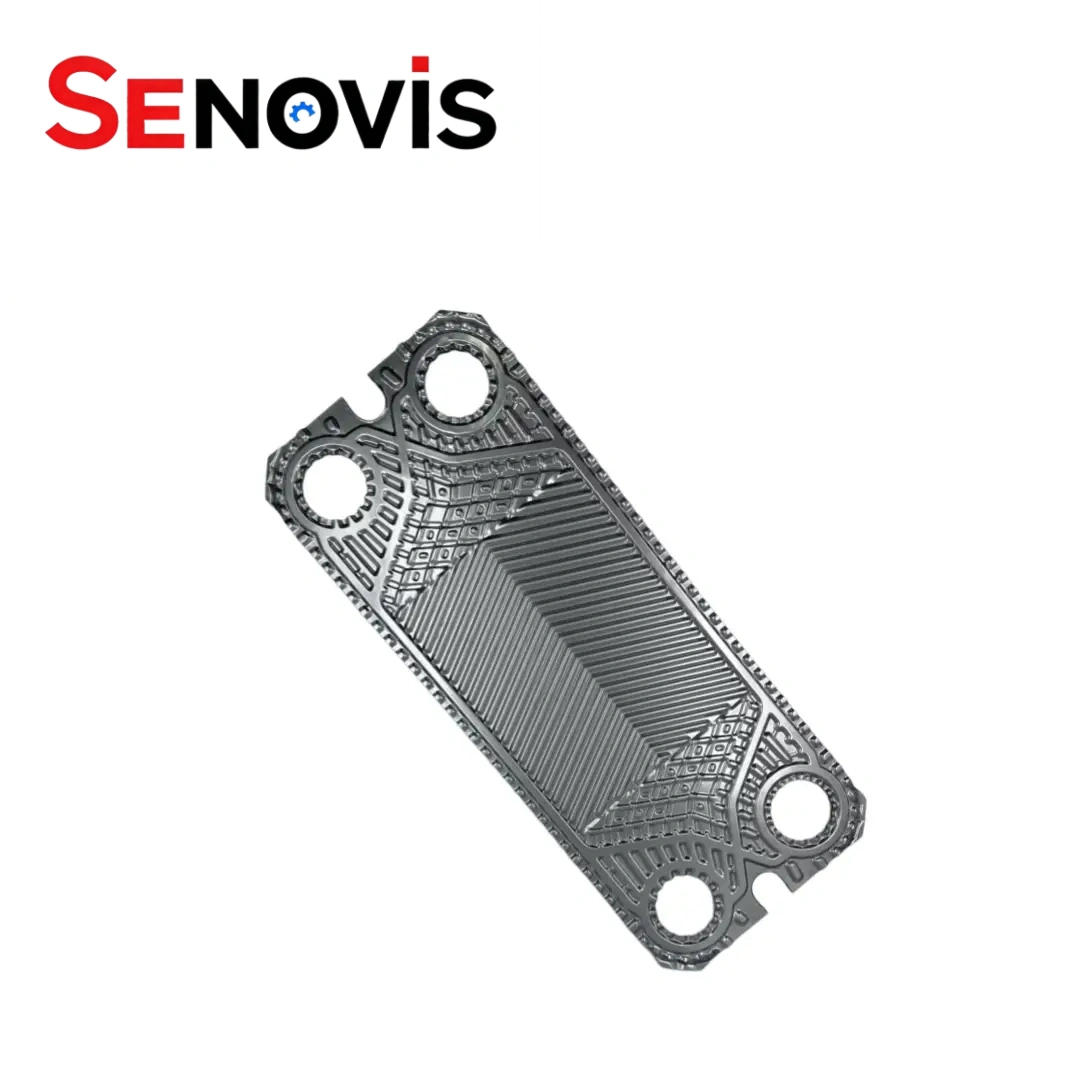

APV N35 plate heat exchanger plate front view for industrial heat transfer systems — Main view of APV N35 plate used in plate heat exchanger systems

APV N35 MGS 10 Plate Heat Exchanger PHE Plate Gasket

Precision plates for apv n35 plate heat exchanger systems, designed for efficient thermal performance and stable operation. Our apv n35 heat exchanger plates ensure accurate fit with apv n35 gasket sealing structures. Suitable for various industries, these PHE plates are manufactured with consistent quality and are compatible with multiple global heat exchanger brands.

APV N35 details

PHE Model

APV N35 PHE Plates

Keyword

Alfa Laval Plate Replacement

Plate Type

H channel M channel L channel

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Product tolerance

Acid, alkali, high temperature

Plate Material

SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni

Plate Hole

0 hole, 1 hole, 2 holes, 3 holes, 4holes

Thinckness

0.5mm 0.6mm 0.7mm 0.8mm

Medium

water, drinks,oil, milk

DESCRIPTION

As a specialized manufacturer of plate heat exchanger components, we supply precision-engineered plates for the apv n35 plate heat exchanger used in a wide range of industrial processes. Our plates for the apv n35 heat exchanger are designed with optimized corrugation patterns to improve fluid distribution and thermal exchange efficiency. Each plate is produced with strict dimensional accuracy to ensure proper fit with the apv n35 gasket, supporting stable sealing performance in operation. The apv n35 plate heat exchanger plates are suitable for applications in food processing, HVAC, chemical, and energy sectors. With advanced production capability and consistent quality control, we deliver reliable PHE plate solutions. Our products are fully compatible with Alfa Laval, APV, TRANTER, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka brands.

APV N35 plate Replacement Specification

PHE Model	APV N35 PHE Gasket
Delivery	Sea freight, air freight
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance	Acid, alkali, high temperature
Material	SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni
Plate Type	H channel M channel L channel
Temperature Range(°C)	-30°C to +180°C (depending on material)
Keyword	Plate Heat Exchanger Gasket Replacement
Provided	video outgoing-inspection
Design Pressure	0.6MPa~5MPa

APV N35 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	APV N35
Corrugation Depth(mm)	2.8
Port Diameter(mm)	φ85
Chevron Angle	120°120°
Corrugation Pitch(mm)	9.09
Equivalent Diameter	5.6
Flow Area(m²)	0.00093
One Plate (m²)	0.36
Port Distance (mm)	1069*238
Dimensions (mm)	1202*371

Actual Product Details

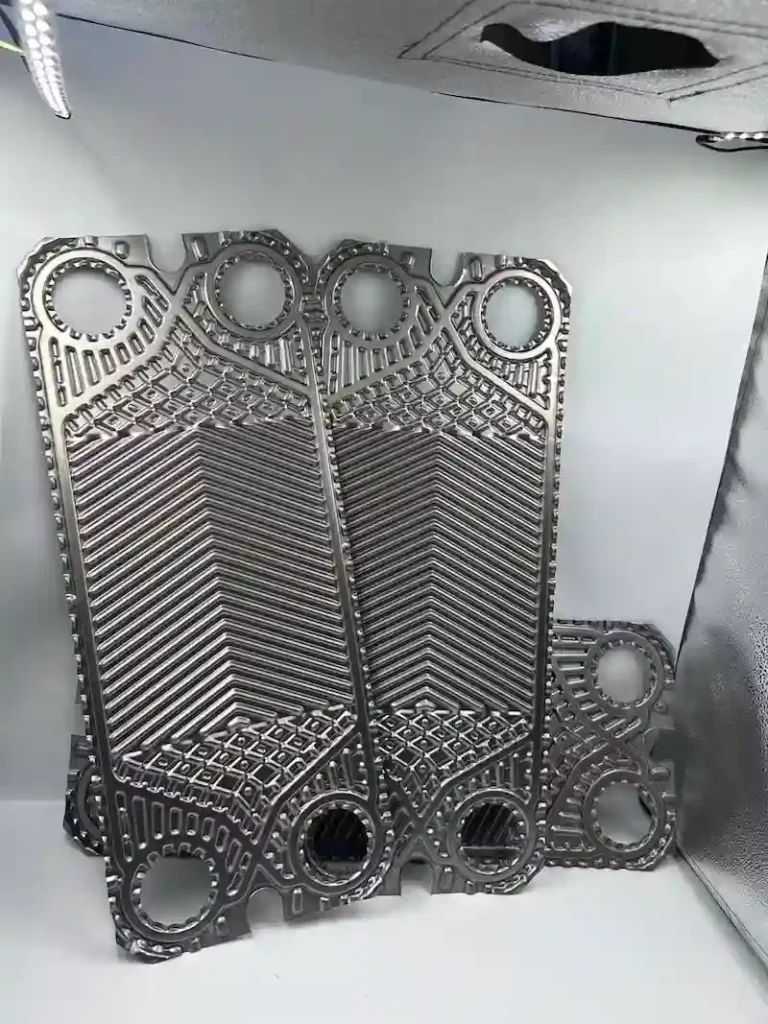

APV N35 heat exchanger plate corrugation detail and surface pattern — Detailed surface pattern of APV N35 plate for improved heat transfer

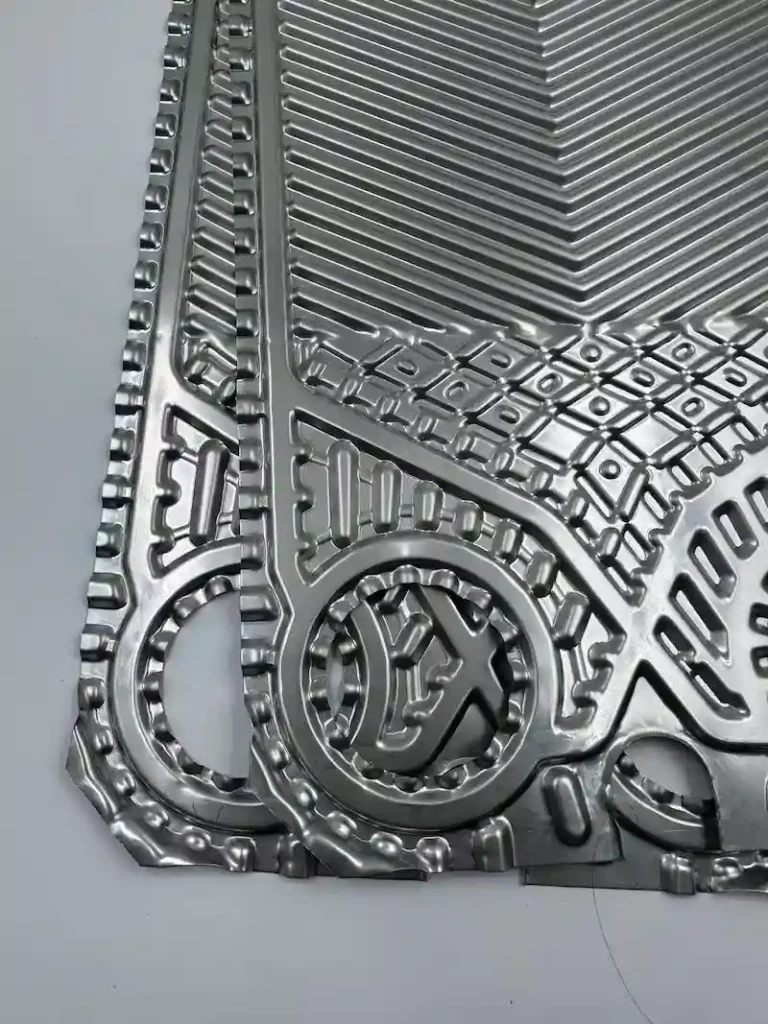

APV N35 PHE plate gasket groove and sealing area detail — Sealing section of APV N35 plate showing gasket groove design

Workshop of Plate Heat Exchanger Factory

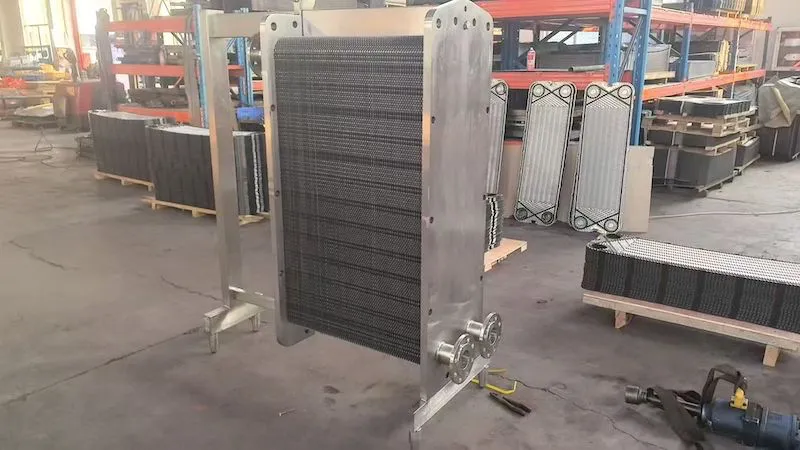

APV N35 plate heat exchanger plates in factory production environment — Production and inspection of APV N35 plates in manufacturing facility

faq

Are spare parts in stock?

Conventional plates and gaskets are in stock, can be delivered within 3-7 days; Customized spare parts need 7-15 working days of production cycle.

Can the plate heat exchanger adapt to food/beverage/pharmaceutical industry?

Yes. We provide food-grade/medical-grade plate heat exchangers, using food-grade stainless steel plates and non-toxic gaskets, comply with food safety standards, easy to clean and sterilize.

Can you design plate heat exchangers for high salinity/corrosive medium?

Yes. For seawater, brine, acid and alkali medium, we can choose titanium alloy, Hastelloy, 254SMO plates and corrosion-resistant Viton gaskets.

Can we customize the plate heat exchanger with special size/connection?

Absolutely. We support non-standard customization: special length/width, flange/thread/socket connection, special material matching, and integrated skid-mounted design.
