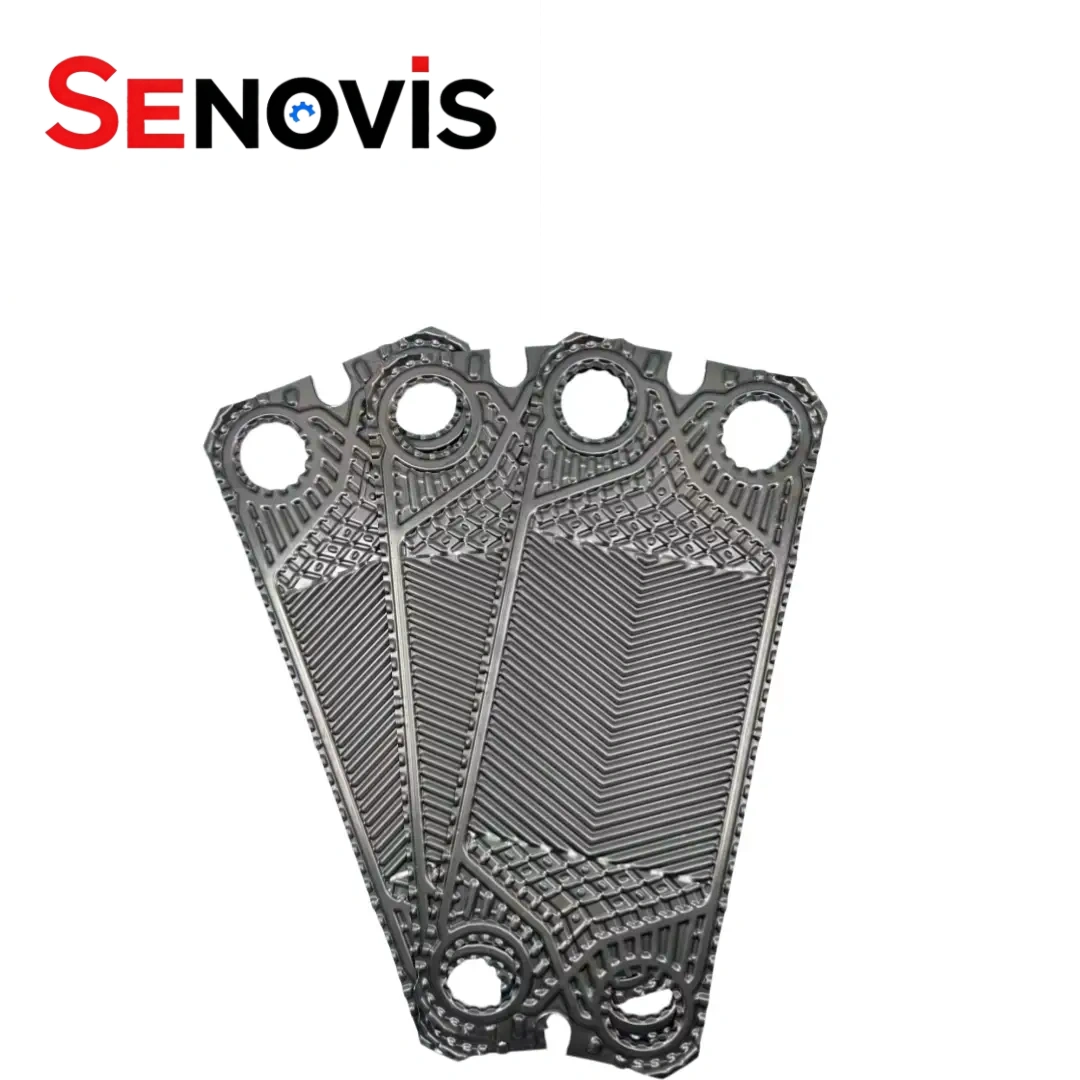

APV N25 plate heat exchanger plate industrial PHE plate design — APV N25 PHE plate overview for heat transfer equipment

APV N25 apv heat exchanger plates PHE

We manufacture precision APV plates, focusing on APV N25 PHE plates for efficient heat transfer. Our range also includes APV N35 and APV N50, supporting various industrial applications. All plates are produced with strict quality control and are fully compatible with Alfa Laval, APV, TRANTER, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka brands.

APV N25 details

PHE Model

APV N25 PHE Plates

Keyword

APV plates

Heat exchanger type

dismountable plate heat exchanger

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Plate Thickness

0.5MM/0.6MM

Plate Material

SS316/SS304/Ti/Hastelloy/Nickel

Plate Hole

0 hole, 1 hole, 2 holes, 3 holes, 4holes

Thinckness

0.5mm 0.6mm 0.7mm 0.8mm

Medium

water, drinks,oil, milk

DESCRIPTION

As a professional manufacturer of plate heat exchanger components, we produce precision-engineered APV plates with a focus on APV N25 PHE plates for reliable industrial heat transfer performance. The plate structure is designed to promote efficient fluid distribution and consistent thermal exchange across various operating conditions. Our product range also includes APV N35 and APV N50 models, supporting diverse system requirements in food processing, HVAC, chemical, and energy industries. Each plate is manufactured with strict dimensional control to ensure stable installation and operation within PHE systems. With advanced production capability and quality assurance, we deliver dependable plate solutions for global applications. Our plates are fully compatible with Alfa Laval, APV, TRANTER, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka brands.

APV N35 plate Replacement Specification

PHE Model	APV N25 PHE Gasket
Heat exchanger type	dismountable plate heat exchanger
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance	Acid, alkali, high temperature
Material	SS316/SS304/Ti/Hastelloy/Nickel
Plate Type	H channel M channel L channel
Temperature Range(°C)	-30°C to +180°C (depending on material)
Keyword	APV plates
Medium	water, drinks,oil, milk
Plate Thickness	0.5MM/0.6MM

APV N35 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	APV N35
Corrugation Depth(mm)	2.8
Port Diameter(mm)	φ85
Chevron Angle	120°
Corrugation Pitch(mm)	9.1
Equivalent Diameter	5.6
Flow Area(m²)	0.00093
One Plate (m²)	0.25
Port Distance (mm)	793.4*238
Dimensions (mm)	930*373

Actual Product Details

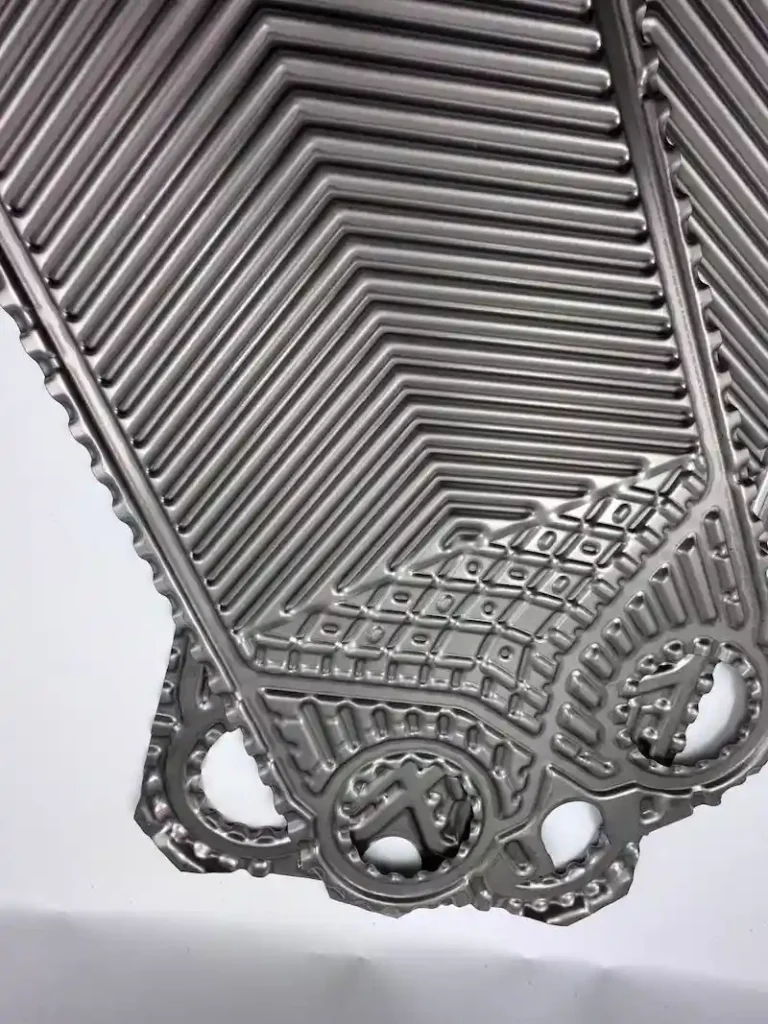

APV N25 PHE plate chevron pattern detail for heat transfer efficiency — Surface pattern of APV N25 plate for enhanced turbulence

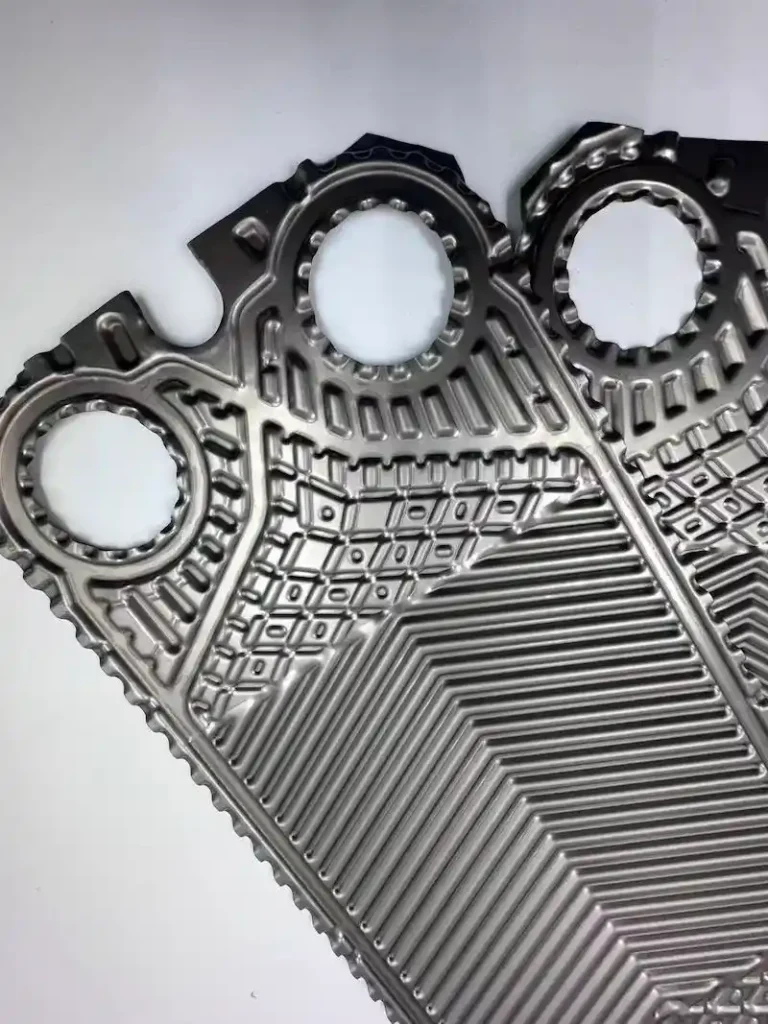

APV N25 plate heat exchanger plate sealing groove and edge detail — Edge and sealing groove design of APV N25 PHE plate

Workshop of Plate Heat Exchanger Factory

APV N25 plate heat exchanger plates production line factory environment — APV N25 plates during production process in factory

faq

What product certifications do you have?

Our plate heat exchangers have ISO9001, CE, ASME, TUV and other international certifications, meet export standards of most countries and regions.

Can you provide thermal calculation report and technical parameters?

Yes. Our professional engineering team will provide formal thermal calculation sheet, detailed technical parameter table, installation and operation manual for each order.

Do you provide lifelong after-sales technical support?

We provide free lifelong technical consultation, maintenance guidance, spare parts supply and upgrade transformation suggestions for all our customers.
