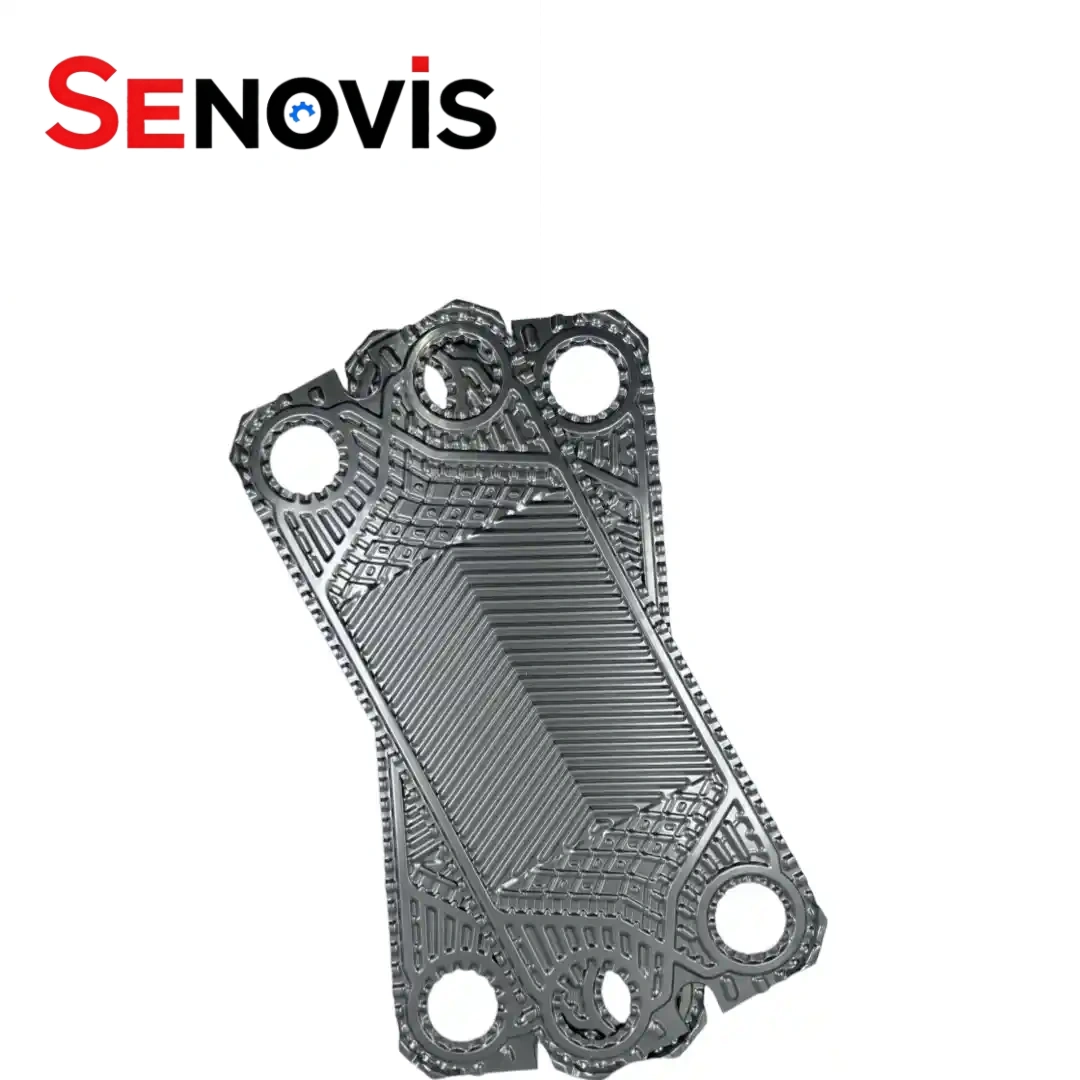

Alfa Laval T8 MFG BFM BFG MFM Heat Exchanger Heat Transfer Plates
As a manufacturer, we supply Alfa Laval T8 Plate Heat Exchanger Plate products for industrial systems. The plate features a defined phe channel to support fluid flow and heat transfer. These plates are widely used for maintenance, replacement, and system upgrades in applications requiring stable thermal performance.
alfa laval T8 details
PHE Model
Alfa Laval T8 PHE Plates
Keyword
Alfa Laval T8 Plate Replacement
Applicable Industries
Plant,metallurgy petroleum, chemical, machinery,Textile , Marine
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Feature
High-temperature and Pressure Resistance &Chemical Resistance
Plate Material
304 316L Titanium plates
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Plate thickess
0.5/0.6mm
Channel gap
2-6 mm
DESCRIPTION
As a manufacturer of plate heat exchanger spare parts, we produce Alfa Laval T8 solutions including Plate Heat Exchanger Plate products for industrial systems. The T8 plate is designed with a defined phe channel structure that supports controlled fluid flow and efficient heat transfer between media. Its surface pattern helps improve thermal exchange performance in applications such as HVAC, energy, and process industries. These plates are widely supplied for maintenance, replacement, and system upgrades, providing a reliable option for maintaining stable operation in plate heat exchanger equipment.
Alfa Laval T8 Gasket Replacement Specification
Specification
| PHE Model | Alfa Laval T8 PHE Plate |
| Plate Material | 304 316L Titanium plates |
| Medium | water, drinks,oil, milk |
| Temperature | -40°C~+200°C |
| Plate Hole | 0 hole, 1 hole, 2 holes, 3 holes, 4holes |
| Gasket material | NBR.HNBR EPDM HEPDM VITON |
| Temperature Range(°C) | -20 to 220 |
| Keyword | Alfa Laval T8 Plate Replacement |
Plate Shape
| Channels Shape | Shape Features |
| L L+L=L channels | A channel consisting of sheets of adjacent small angles. The heat transfer coefficient is low and the resistance is small. Suitable for large flow, heat transfer “weak” (low specific heat or small temperature difference), such as: air heat transfer under ambient pressure. |
| H H+H=H channels | A channel consisting of plates with adjacent large angles. The heat transfer coefficient is high and the resistance is high. It is suitable for small flow but strong heat transfer (high specific heat, phase change or large temperature difference), such as: refrigerant phase change heat transfer. |
| M L+H=M channels | A channel consisting of adjacent plates with large and small angles. The heat transfer coefficient and resistance are between H and L channels. |
Alfa Laval Plate heat plates Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| AL Series | M3, M6, M6MX-R, M6MX-L, M10B, M10M, M10BW, M15B, M15M, M15BLip, MK15BW, MX25B, MX25M, M30, M30M, MA30M, P16, P22, P26, P31-P, P31-D, P32, P36, H10, A10, A10B-R, A10B-L, AM10, A15, A15B, A20, A20B, AK20, AM20B, AM20M, AM20S, AX30, AX30BW, Clip6, Clip8, Clip10, JWP26, JWP36, JFEC50, JFEC150A, JFEC150B, JFEC350, JFEC500 |
| APV Series | A055, A085, H12, H17C, H17G, J060, J092, J107, J185, Sr1, Sr2, Sr3, Sr6, Sr14, Sr95, M60, M92, M107, U2, T4, N25, N35-C, N35-G, Q030D, Q030E, Q055, Q080, K34, K55, K71G, R5-R, R5-L, N50, P105, P190, E201, RS3 |
| GEA Series | VT04P, VT10F, VT20-C, VT20-G, VT20P, VT40-C, VT40-G, VT40P/M, VT40P, VT80-C, VT80-G, VT80M, VT80P, VT805, VT130F, VT130K, VT405, VT1306, VT2508, NT10, NT50T, NT50X, NT50M, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250L, NT350S, FA184, FE184, LWC100T, N40 |
| Tranter Series | GXP018, GXP026, GXP042, GXP051, GXD012, GXD026, GXD042, GXD051, GXD060, GXD085, GXD145, GCD030, GCD054, GCP016, GCP026, GCP051, GFP050, GFP100, GLD013, S3/GFP030, S8/GFP080, GL13, GX12, GX13, GC26, GX26, GC30, GC42, GX42, GX51, GC51, GC54, GC60, GX60, GX100, GX180 |
| Vicarb Series | V4, V8, VU8, V10, V13C, V13G, V20C, V20G, V28C, V28G, V45C, V45G, V60C, V60G, V60A, V60B, V85G, V100A, V100B, V110A, V130, V170, V280 |
| Sondex Series | S4A, S7A, S8, S8A, S14A, S15, S19A, S20, S20A, S21, S21A, S22, S27A, S30, S35, S37, S37B, S38, S39, S41, S41A, S42, S43B, S47B, S50, S62, S64, S65B, S65C, S65G, S81, S100B, S121, S188, SFD13 |
| Thermowave Series | TL90SS, TL90PP, TL150SS, TL150PP, TL200PP, TL200SS, TL250SS, TL250PP, TL500SS, TL500PP, TL650SS, TL650PP, TL850PP, TL850SS |
| Hisaka Series | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15 |
| Hisaka Series | LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15 |
| Funke Series | FP04, FP08, FP10, FP14, FP20, FP16, FP22, FP205, FP31, FP40, FP50, FP41, FP60, FP80 |
| Botai Series | FM10MC, FM10MD, FM6MC, M15MC, FMX25MA, FMX25B, FBR08, FBR06, FBB1.2, FBB09, FBB05, FBB08, FBB06, FBB04, FBB06X, FBB045, FBB03, FBR005, FBR007, FM30MC |

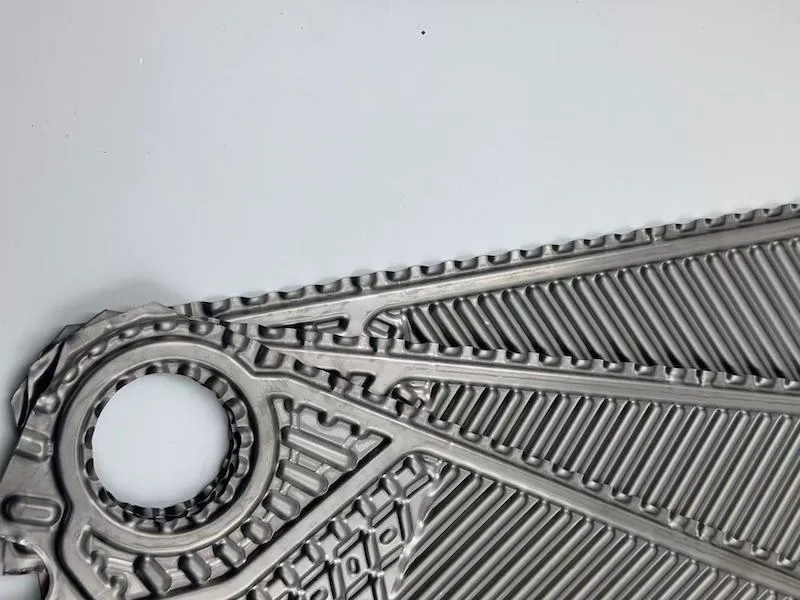

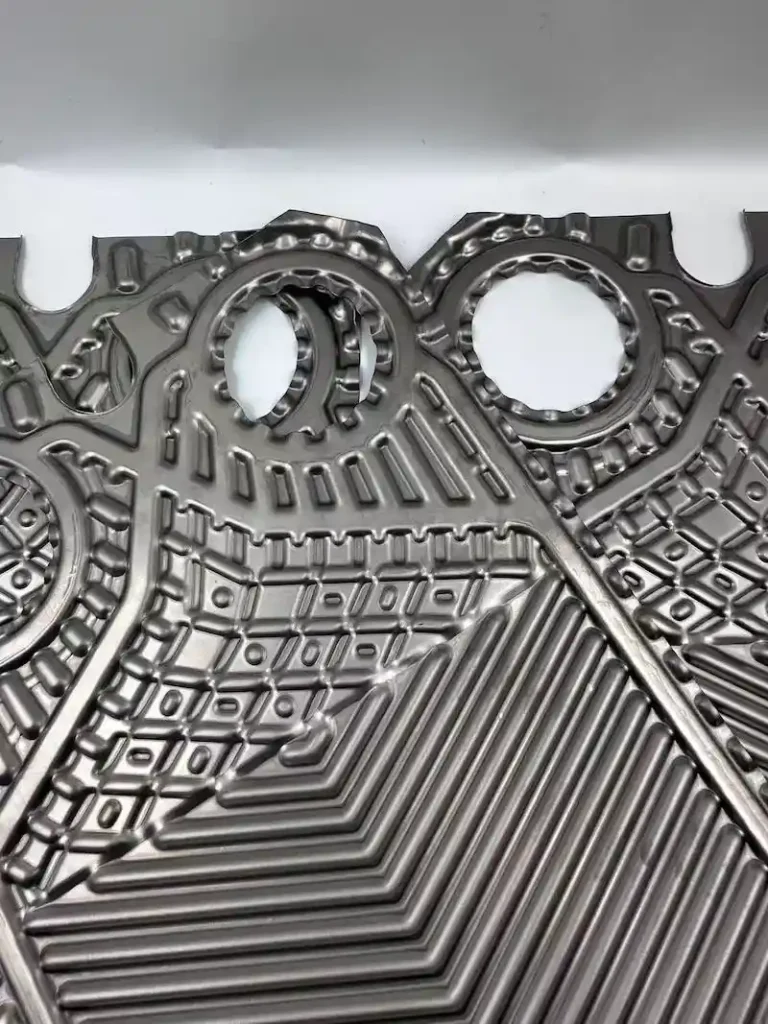

Actual Product Details

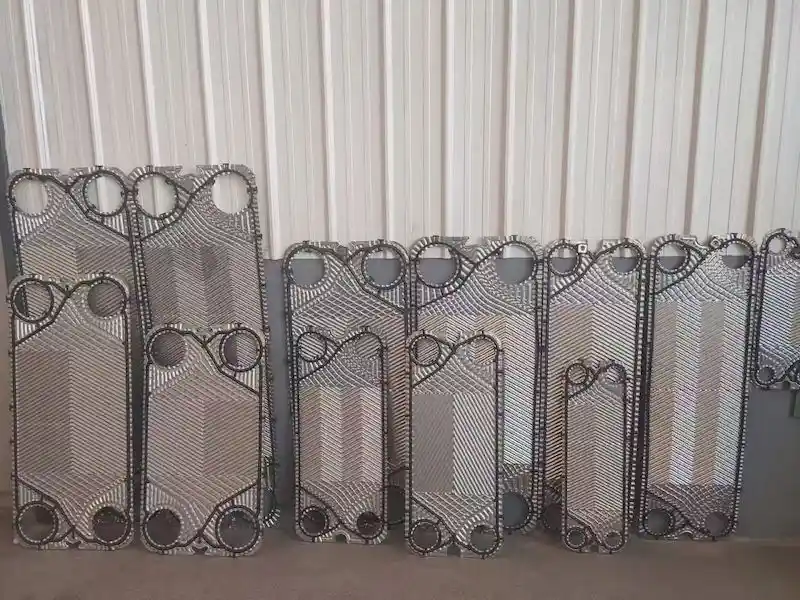

Workshop of Plate Heat Exchanger Factory
