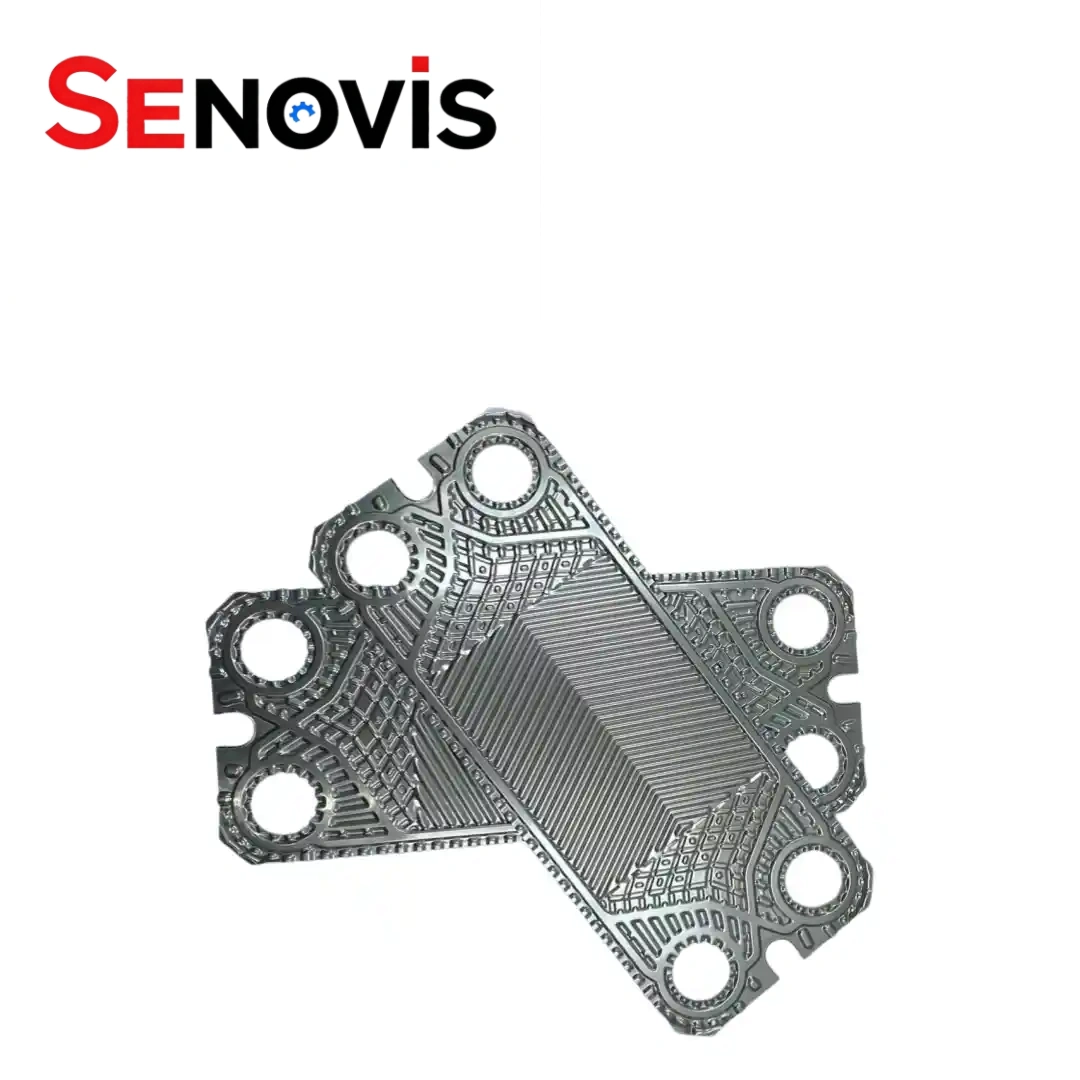

Alfa Laval T5M plate heat exchanger plate PHE heat transfer plate industrial use — Heat transfer plate applied in Alfa Laval T5M PHE systems

Alfa Laval T5M FG Plate Heat Exchanger Parts Plates

We manufacture Alfa Laval T5M Heat Transfer Plates for use as Plate Heat Exchanger Plate components in industrial systems. These plates are designed with structured surfaces to support efficient heat exchange and stable fluid flow. Suitable for maintenance and replacement, they are widely applied in HVAC, energy, and processing industries requiring reliable thermal performance.

alfa laval T5M details

PHE Model

Alfa Laval T5M PHE Plates

Keyword

Heat Transfer Plates

Hardness

40-90 Shore-A

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Warranty

1 Year

Plate Material

Stainless steel /TI /NI /SMO254

Plate Hole

0 hole, 1 hole, 2 holes, 3 holes, 4holes

Thinckness

0.5mm 0.6mm 0.7mm 0.8mm

Medium

water, drinks,oil, milk

DESCRIPTION

As a manufacturing factory for heat exchanger components, we produce Alfa Laval T5M Heat Transfer Plates used in plate heat exchanger systems. Each Plate Heat Exchanger Plate is formed with a precise surface pattern to support fluid distribution and efficient thermal exchange. The T5M plates are suitable for industrial applications such as HVAC, energy, and chemical processing, where stable heat transfer is required. Through controlled production processes, these plates are supplied for equipment maintenance, replacement, and system upgrades, helping ensure consistent performance in plate heat exchanger operations.

Alfa Laval T5M Gasket Replacement Specification

Specification

PHE Model	Alfa Laval T20 PHE Plate
Plate Material	Stainless steel /TI /NI /SMO254
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1mm
Hardness	40-90 Shore-A
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Plate Hole	0 hole, 1 hole, 2 holes, 3 holes, 4holes
Gasket material	NBR.HNBR EPDM HEPDM VITON
Warranty	1 Year
Keyword	PHE Plate

Plate Material

Plate Material	Available Medium
SS304	Drink water, None Corrosive Liquid, Oils, Fresh Steam etc.
SS316L	Well water, river water, closed circulating water and other water with complex components, Dilute sulfuric acid with temperature ≤ 50 ℃ and concentration ≤ 10% etc.
Titanium	Liquid that contains chlorine iron, Sea water etc.
Titanium Palladium Alloy	Higher temperature and corrosion resistance than titanium.
Nickel 20	It is mainly used for caustic solution (NaOH, Koh, etc.) with high concentration (50% ~ 70%) and high temperature (boiling point).
Hastelloy C-276	It has good corrosion resistance, almost not affected by Cl -, excellent corrosion resistance to various concentrations of sulfuric acid, and is one of the few materials that can be used in hot concentrated sulfuric acid, widely used in organic acids (such as formic acid, acetic acid), high temperature HF acid and a certain concentration of hydrochloric acid (< 40%), phosphoricacid (< 50%); chloride, fluoride.

Alfa Laval Plate heat plates Compatible Brands

Compatible Brands	Plate heat exchanger models
AL Series	M3, M6, M6MX-R, M6MX-L, M10B, M10M, M10BW, M15B, M15M, M15BLip, MK15BW, MX25B, MX25M, M30, M30M, MA30M, P16, P22, P26, P31-P, P31-D, P32, P36, H10, A10, A10B-R, A10B-L, AM10, A15, A15B, A20, A20B, AK20, AM20B, AM20M, AM20S, AX30, AX30BW, Clip6, Clip8, Clip10, JWP26, JWP36, JFEC50, JFEC150A, JFEC150B, JFEC350, JFEC500
APV Series	A055, A085, H12, H17C, H17G, J060, J092, J107, J185, Sr1, Sr2, Sr3, Sr6, Sr14, Sr95, M60, M92, M107, U2, T4, N25, N35-C, N35-G, Q030D, Q030E, Q055, Q080, K34, K55, K71G, R5-R, R5-L, N50, P105, P190, E201, RS3
GEA Series	VT04P, VT10F, VT20-C, VT20-G, VT20P, VT40-C, VT40-G, VT40P/M, VT40P, VT80-C, VT80-G, VT80M, VT80P, VT805, VT130F, VT130K, VT405, VT1306, VT2508, NT10, NT50T, NT50X, NT50M, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250L, NT350S, FA184, FE184, LWC100T, N40
Tranter Series	GXP018, GXP026, GXP042, GXP051, GXD012, GXD026, GXD042, GXD051, GXD060, GXD085, GXD145, GCD030, GCD054, GCP016, GCP026, GCP051, GFP050, GFP100, GLD013, S3/GFP030, S8/GFP080, GL13, GX12, GX13, GC26, GX26, GC30, GC42, GX42, GX51, GC51, GC54, GC60, GX60, GX100, GX180
Vicarb Series	V4, V8, VU8, V10, V13C, V13G, V20C, V20G, V28C, V28G, V45C, V45G, V60C, V60G, V60A, V60B, V85G, V100A, V100B, V110A, V130, V170, V280
Sondex Series	S4A, S7A, S8, S8A, S14A, S15, S19A, S20, S20A, S21, S21A, S22, S27A, S30, S35, S37, S37B, S38, S39, S41, S41A, S42, S43B, S47B, S50, S62, S64, S65B, S65C, S65G, S81, S100B, S121, S188, SFD13
Thermowave Series	TL90SS, TL90PP, TL150SS, TL150PP, TL200PP, TL200SS, TL250SS, TL250PP, TL500SS, TL500PP, TL650SS, TL650PP, TL850PP, TL850SS
Hisaka Series	V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130
Thermowave	LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15
Hisaka Series	LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15
Funke Series	FP04, FP08, FP10, FP14, FP20, FP16, FP22, FP205, FP31, FP40, FP50, FP41, FP60, FP80
Botai Series	FM10MC, FM10MD, FM6MC, M15MC, FMX25MA, FMX25B, FBR08, FBR06, FBB1.2, FBB09, FBB05, FBB08, FBB06, FBB04, FBB06X, FBB045, FBB03, FBR005, FBR007, FM30MC

Actual Product Details

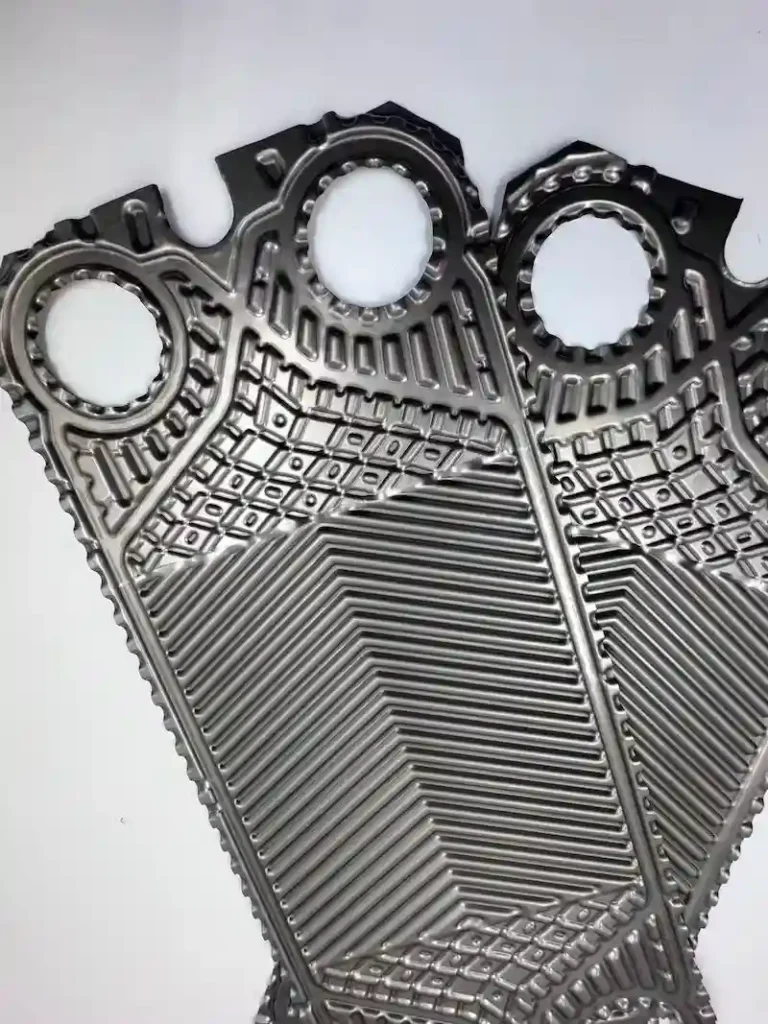

T5M PHE plate pattern and channel detail Alfa Laval heat exchanger plate structure — Pattern and channel design for fluid flow and heat transfer

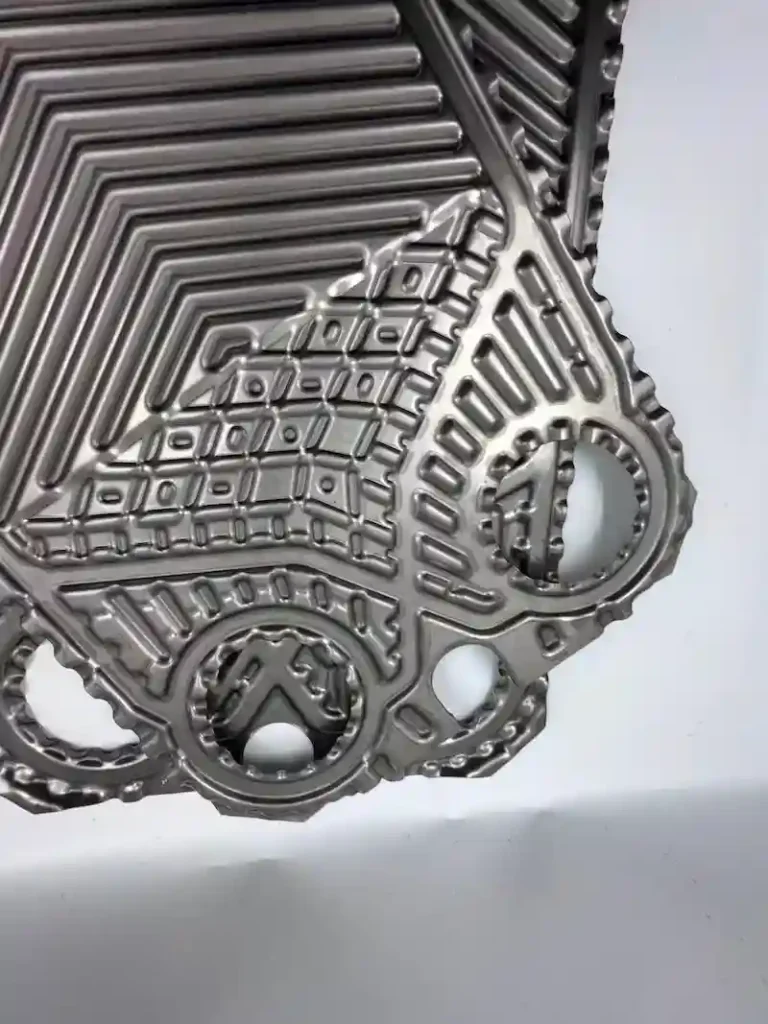

Alfa Laval T5M plate edge and connection detail plate heat exchanger component — Edge and connection design for proper plate assembly

Workshop of Plate Heat Exchanger Factory

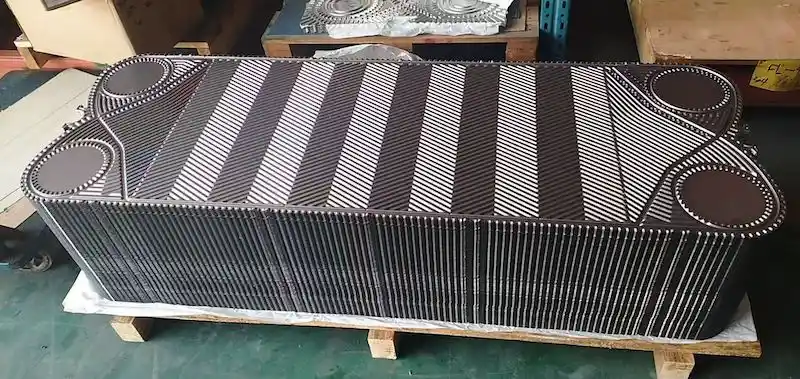

T5M plate heat exchanger plate real product factory environment PHE plate industrial scene — Finished T5M plates in factory ready for inspection and delivery
