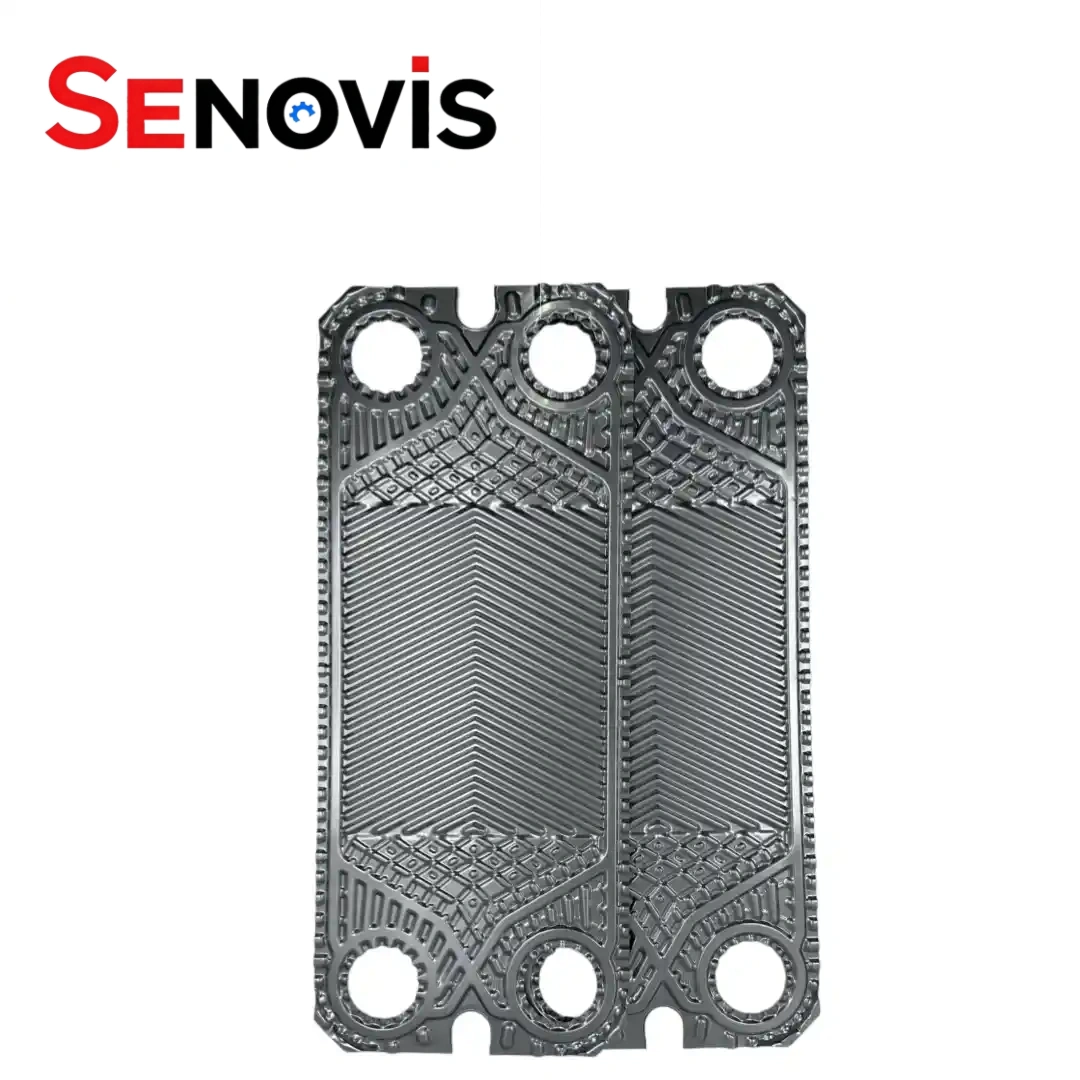

Alfa Laval AC600 plate heat exchanger plate PHE thermal exchange metal plate industrial use — AC600 plate for heat transfer in plate heat exchanger systems

Alfa Laval AC600 Plate Heat Exchanger Plate PHE Channel

As a factory, we produce alfa laval AC600 phe plates as part of phe spare parts for industrial systems. Alongside models like alfa laval EC500 and alfa laval T8M, these plates support heat transfer and fluid flow in plate heat exchanger applications.

alfa laval AC600 details

PHE Model

Alfa Laval AC600 PHE Plates

Keyword

PHE Channel

Applicable Industries

Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Certificate

ISO9001/ROHS/LFGB/IATF16949/ISO13485

Plate Material

Carbon steel, stainless steel and others on request

Plate Hole

0 hole, 1 hole, 2 holes, 3 holes, 4holes

Thinckness

0.4mm ~ 1.0mm

Medium

water, drinks,oil, milk

DESCRIPTION

From a plate heat exchanger service standpoint, I work with alfa laval AC600 units and related phe plates used in industrial thermal systems. The AC600 plates are designed to support efficient heat exchange and stable fluid distribution under varying operating conditions. Compared with models such as alfa laval EC500 and alfa laval T8M, the AC600 plates are typically applied in systems requiring higher capacity and consistent performance. These plates are commonly used in maintenance and replacement projects, helping maintain proper heat transfer and reliable operation across industries including energy, HVAC, and process engineering.

Alfa Laval AC600 Gasket Replacement Specification

Specification

PHE Model	Alfa Laval AC600 PHE Plate
Plate Material	Carbon steel, stainless steel and others on request
Plate Thickness	0.4mm ~ 1.0mm
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Plate Hole	0 hole, 1 hole, 2 holes, 3 holes, 4holes
Certificate	ISO9001/ROHS/LFGB/IATF16949/ISO13485
Provided	video outgoing-inspection
Keyword	PHE Channel

Plate Material

Plate Material	Available Medium
Pure Water, Fresh Water, Mineral Water	Pure Water, Fresh Water, Mineral Water
Titanium	Sea Water, Mineral Oil, Vegetable Water
254SMO	Dulute Sulphuric Acid etc
Hastelloy	Concentration Sulphuric Acid etc
Ni	Caustic Soda with high temperature and concentraction

Alfa Laval Plate heat plates Compatible model

Alfa Laval M Series: M3, M6B, M6M, M10B, M10M, M15B, M15M, MX25M, MX25B, M30, MA30W, MA30S, MA30M

Alfa Laval TL & TS Series: TS6M, TL6B, TL10B, TL10P, TL10S, TL15B, TS20M, TL35B, TL35X

Alfa Laval T Series: T20S, T20M, T20B, T20P, T2B, T5B, T5M, T8B, T8M, T35PAlfa Laval P Series: P16, P26/P22, P36, P41

Alfa Laval A / AM / AK Series: AK20, AM10, A10B, A15B, A20, AM20, A20B, AM20B, AX30B, A35

Alfa Laval Clip Series: Clip3, Clip6, Clip8, Clip10, Clip15

Alfa Laval MW / BW Series: M6MW, M10BW, MK15BW, T20MW

Alfa Laval Large Unit Series: EC500, AC600, HU15M

Actual Product Details

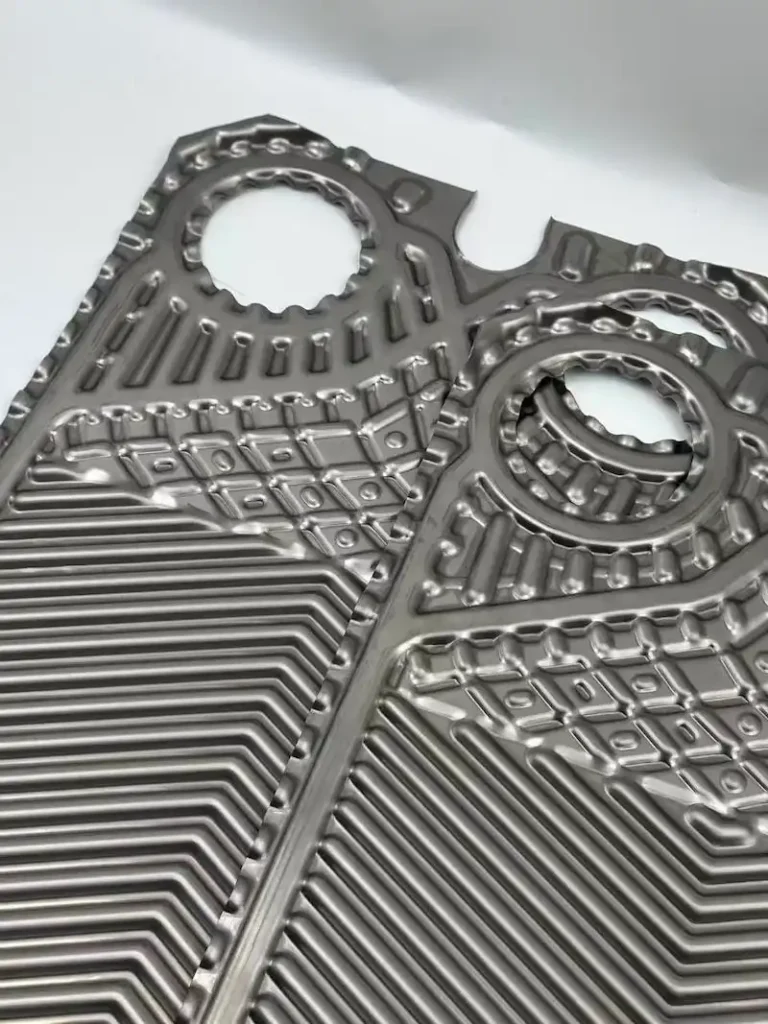

AC600 PHE plate surface texture detail Alfa Laval heat exchanger plate design — Surface texture for improving heat exchange efficiency

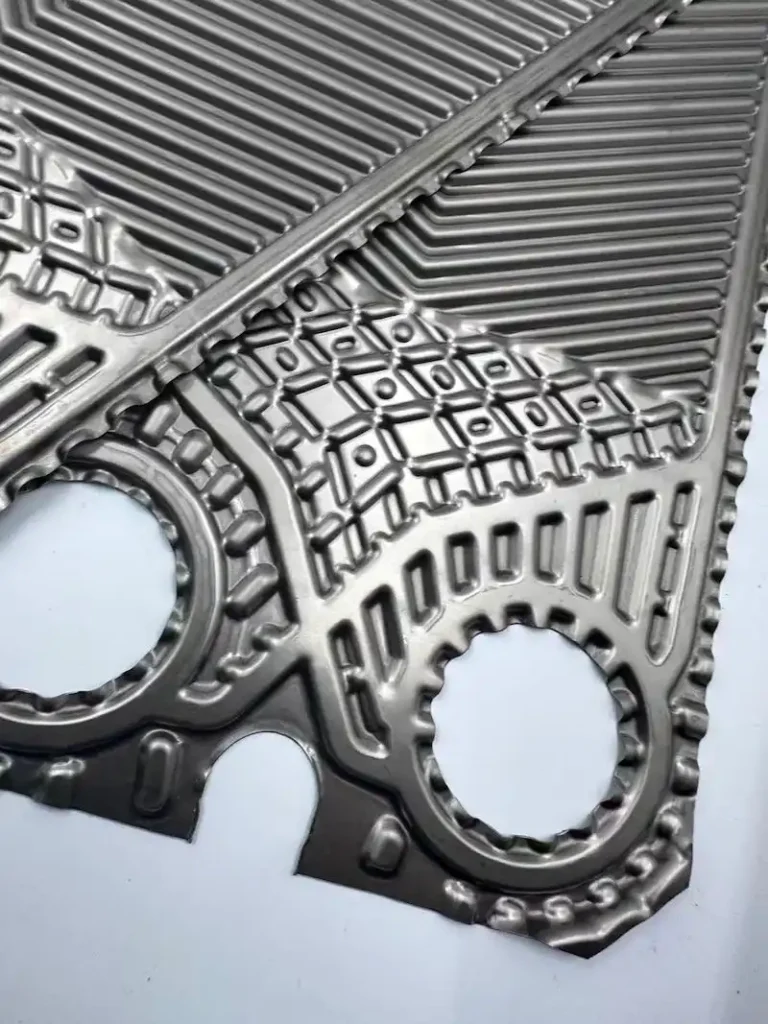

Alfa Laval AC600 plate flow distribution area detail PHE plate channel design — Flow distribution area supporting balanced fluid movement

Workshop of Plate Heat Exchanger Factory

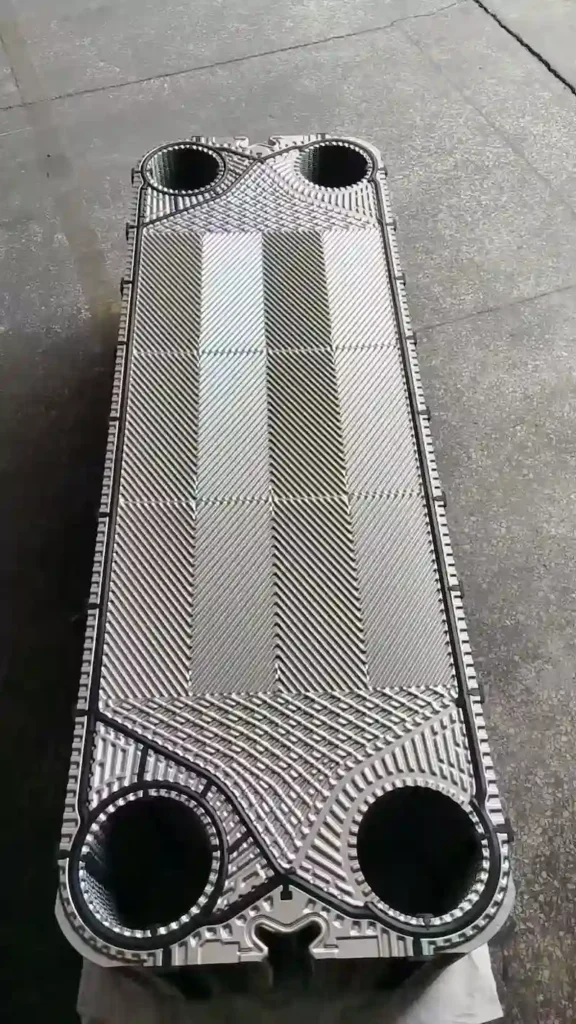

AC600 plate heat exchanger plate factory real production scene industrial PHE plate — Manufactured AC600 plates in factory ready for inspection

faq

Is it easy to maintain and replace spare parts?

Yes. Plates and gaskets are easy to disassemble, clean and replace. We provide matching spare parts with stable compatibility.

What industries are your heat exchangers suitable for?

Widely used in HVAC, central heating, food u0026amp; beverage, chemical industry, pharmaceutical, marine, refrigeration, water treatment and industrial manufacturing.

Can it work in high temperature and high pressure conditions?

Yes. We can design high-pressure and high-temperature type according to your actual working environment.

What’s the difference between gasketed, brazed and welded plate heat exchangers?

Gasketed type is easy to disassemble, clean and expand, suitable for most working conditions; Brazed type is compact, no gasket, ideal for refrigeration, small flow u0026amp; high pressure working conditions; Welded type has better high temperature u0026amp; high pressure resistance, suitable for harsh medium like corrosive, high viscosity fluid.
