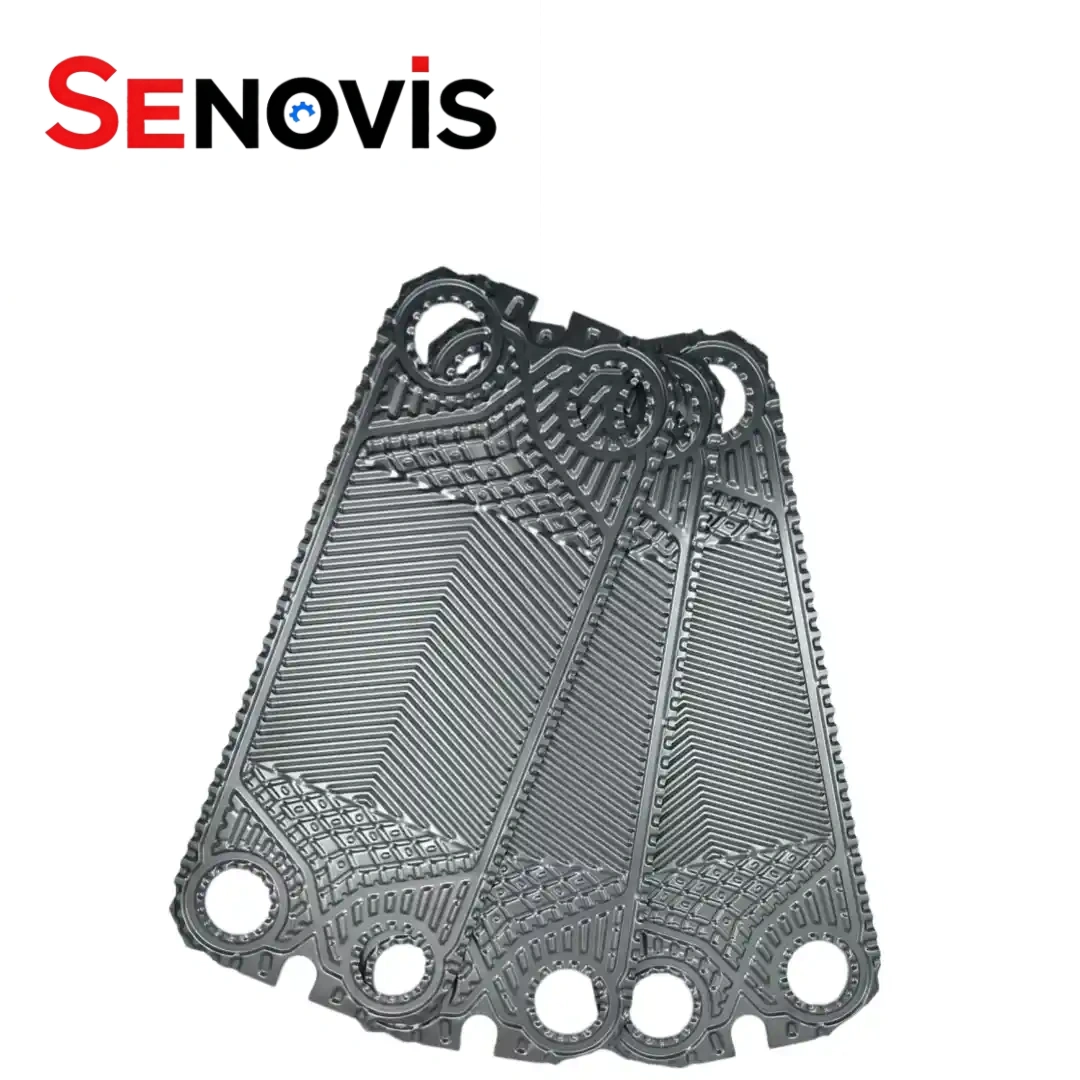

Alfa Laval T20 BWFD PFG BFG MFG MFM Heat Exchanger Plate Replacement
Drawing on hands-on knowledge of plate heat exchanger systems, I handle Alfa Laval T20 components, including Plate Heat Exchanger Plate solutions used in demanding industrial environments. The T20 Heat Transfer Plate features a structured surface.
alfa laval T20 details
PHE Model
Alfa Laval T20 PHE Plate
Keyword
PHE Plate
Plate Material
SS304,316L,Titanium,AlloyC276,Nickel, 254SMO,C2000
Plate Type
H channel M channel L channel
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Design Pressure
0.6MPa~4.5MPa
Medium
water, drinks,oil, milk
Thinckness
0.5mm, 0.6mm, 0.7mm, 0.8mm, 1mm
DESCRIPTION
Drawing on hands-on knowledge of plate heat exchanger systems, I handle Alfa Laval T20 components, including Plate Heat Exchanger Plate solutions used in demanding industrial environments. The T20 Heat Transfer Plate features a structured surface that promotes efficient thermal exchange and balanced fluid flow. It is widely applied in industries such as energy, chemical processing, and HVAC, where stable heat transfer is essential. These plates are commonly selected for replacement and system optimization projects, helping maintain consistent operation and supporting reliable performance in plate heat exchanger applications.
Alfa Laval T20 Gasket Replacement Specification
Specification
| PHE Model | Alfa Laval T20 PHE Plate |
| Plate Material | SS304,316L,Titanium,AlloyC276,Nickel, 254SMO,C2000 |
| Plate Thickness | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1mm |
| Compatible Brands | Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc. |
| Plate Hole | 0 hole, 1 hole, 2 holes, 3 holes, 4holes |
| Gasket material | NBR.HNBR EPDM HEPDM VITON |
| Temperature Range(°C) | -20 to 220 |
| Keyword | PHE Plate |
Plate Material
| Plate Material | Available Medium |
| Pure Water, Fresh Water, Mineral Water | Pure Water, Fresh Water, Mineral Water |
| Titanium | Sea Water, Mineral Oil, Vegetable Water |
| 254SMO | Dulute Sulphuric Acid etc |
| Hastelloy | Concentration Sulphuric Acid etc |
| Ni | Caustic Soda with high temperature and concentraction |
Alfa Laval Plate heat plates Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| AL Series | M3, M6, M6MX-R, M6MX-L, M10B, M10M, M10BW, M15B, M15M, M15BLip, MK15BW, MX25B, MX25M, M30, M30M, MA30M, P16, P22, P26, P31-P, P31-D, P32, P36, H10, A10, A10B-R, A10B-L, AM10, A15, A15B, A20, A20B, AK20, AM20B, AM20M, AM20S, AX30, AX30BW, Clip6, Clip8, Clip10, JWP26, JWP36, JFEC50, JFEC150A, JFEC150B, JFEC350, JFEC500 |
| APV Series | A055, A085, H12, H17C, H17G, J060, J092, J107, J185, Sr1, Sr2, Sr3, Sr6, Sr14, Sr95, M60, M92, M107, U2, T4, N25, N35-C, N35-G, Q030D, Q030E, Q055, Q080, K34, K55, K71G, R5-R, R5-L, N50, P105, P190, E201, RS3 |
| GEA Series | VT04P, VT10F, VT20-C, VT20-G, VT20P, VT40-C, VT40-G, VT40P/M, VT40P, VT80-C, VT80-G, VT80M, VT80P, VT805, VT130F, VT130K, VT405, VT1306, VT2508, NT10, NT50T, NT50X, NT50M, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250L, NT350S, FA184, FE184, LWC100T, N40 |
| Tranter Series | GXP018, GXP026, GXP042, GXP051, GXD012, GXD026, GXD042, GXD051, GXD060, GXD085, GXD145, GCD030, GCD054, GCP016, GCP026, GCP051, GFP050, GFP100, GLD013, S3/GFP030, S8/GFP080, GL13, GX12, GX13, GC26, GX26, GC30, GC42, GX42, GX51, GC51, GC54, GC60, GX60, GX100, GX180 |
| Vicarb Series | V4, V8, VU8, V10, V13C, V13G, V20C, V20G, V28C, V28G, V45C, V45G, V60C, V60G, V60A, V60B, V85G, V100A, V100B, V110A, V130, V170, V280 |
| Sondex Series | S4A, S7A, S8, S8A, S14A, S15, S19A, S20, S20A, S21, S21A, S22, S27A, S30, S35, S37, S37B, S38, S39, S41, S41A, S42, S43B, S47B, S50, S62, S64, S65B, S65C, S65G, S81, S100B, S121, S188, SFD13 |
| Thermowave Series | TL90SS, TL90PP, TL150SS, TL150PP, TL200PP, TL200SS, TL250SS, TL250PP, TL500SS, TL500PP, TL650SS, TL650PP, TL850PP, TL850SS |
| Hisaka Series | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15 |
| Hisaka Series | LX00A, LX10A, LX20, LX20A, LX30A, LX40, LX40A, LX50A, UX01, UX10, UX10A, UX20, UX20A, UX30, UX30A, UX40, UX40A, UX80, UX90, RX10A, RX11A, RX30A, RX70, SX40(41), SX40A, EX11, EX15 |
| Funke Series | FP04, FP08, FP10, FP14, FP20, FP16, FP22, FP205, FP31, FP40, FP50, FP41, FP60, FP80 |
| Botai Series | FM10MC, FM10MD, FM6MC, M15MC, FMX25MA, FMX25B, FBR08, FBR06, FBB1.2, FBB09, FBB05, FBB08, FBB06, FBB04, FBB06X, FBB045, FBB03, FBR005, FBR007, FM30MC |

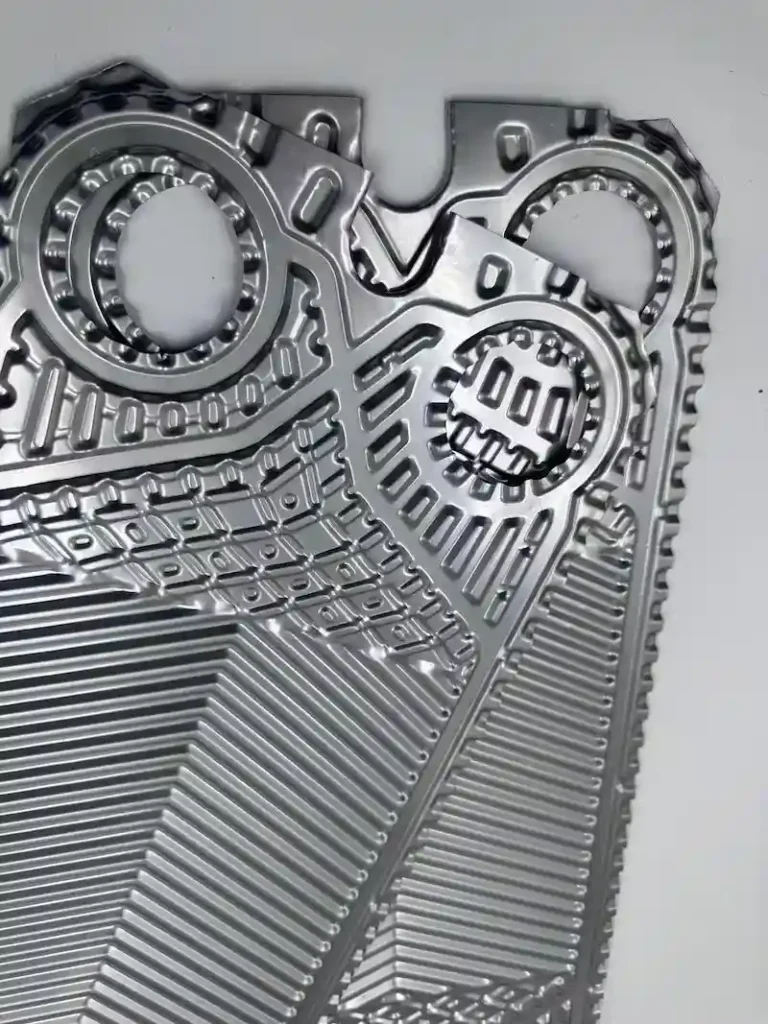

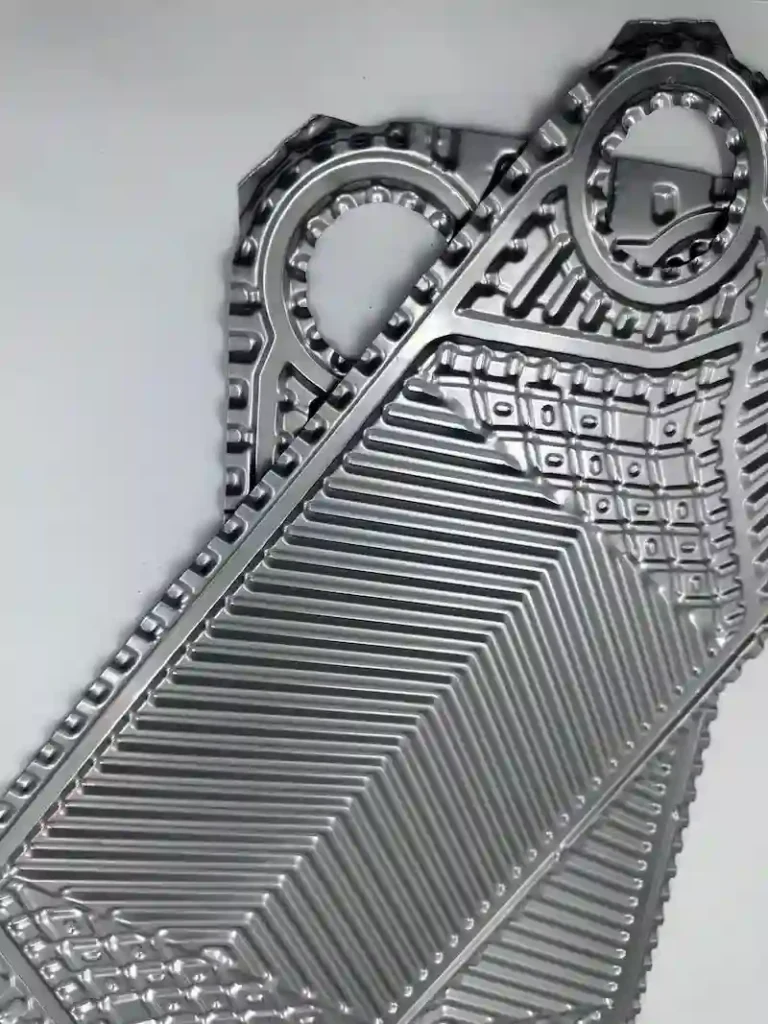

Actual Product Details

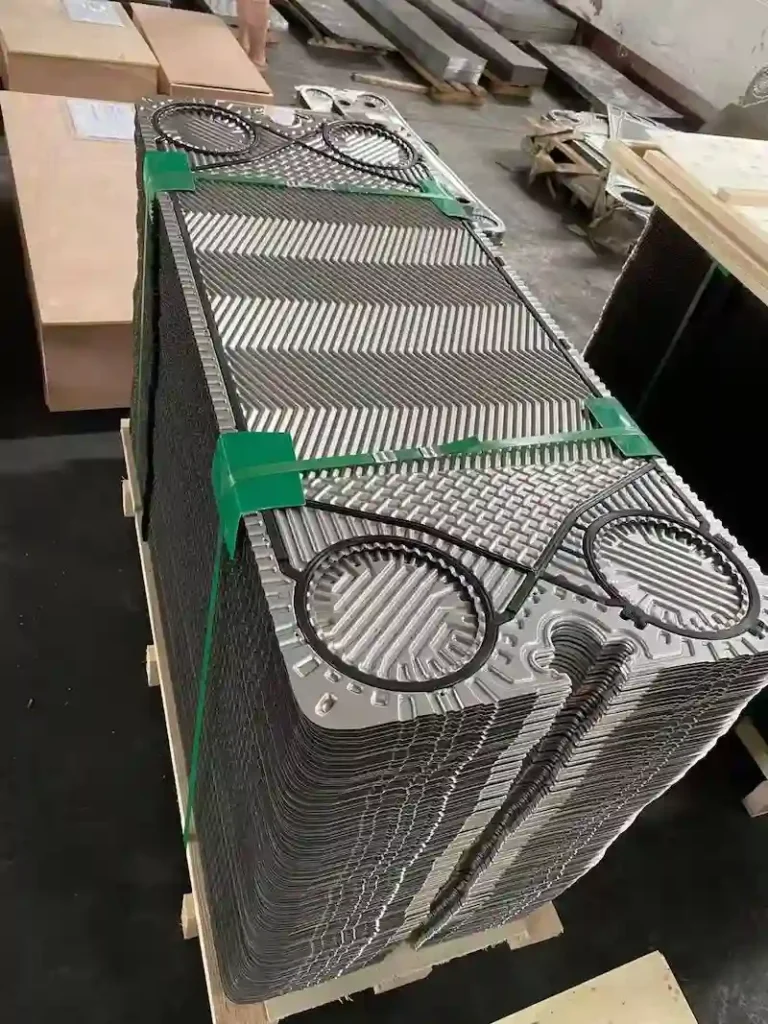

Workshop of Plate Heat Exchanger Factory
