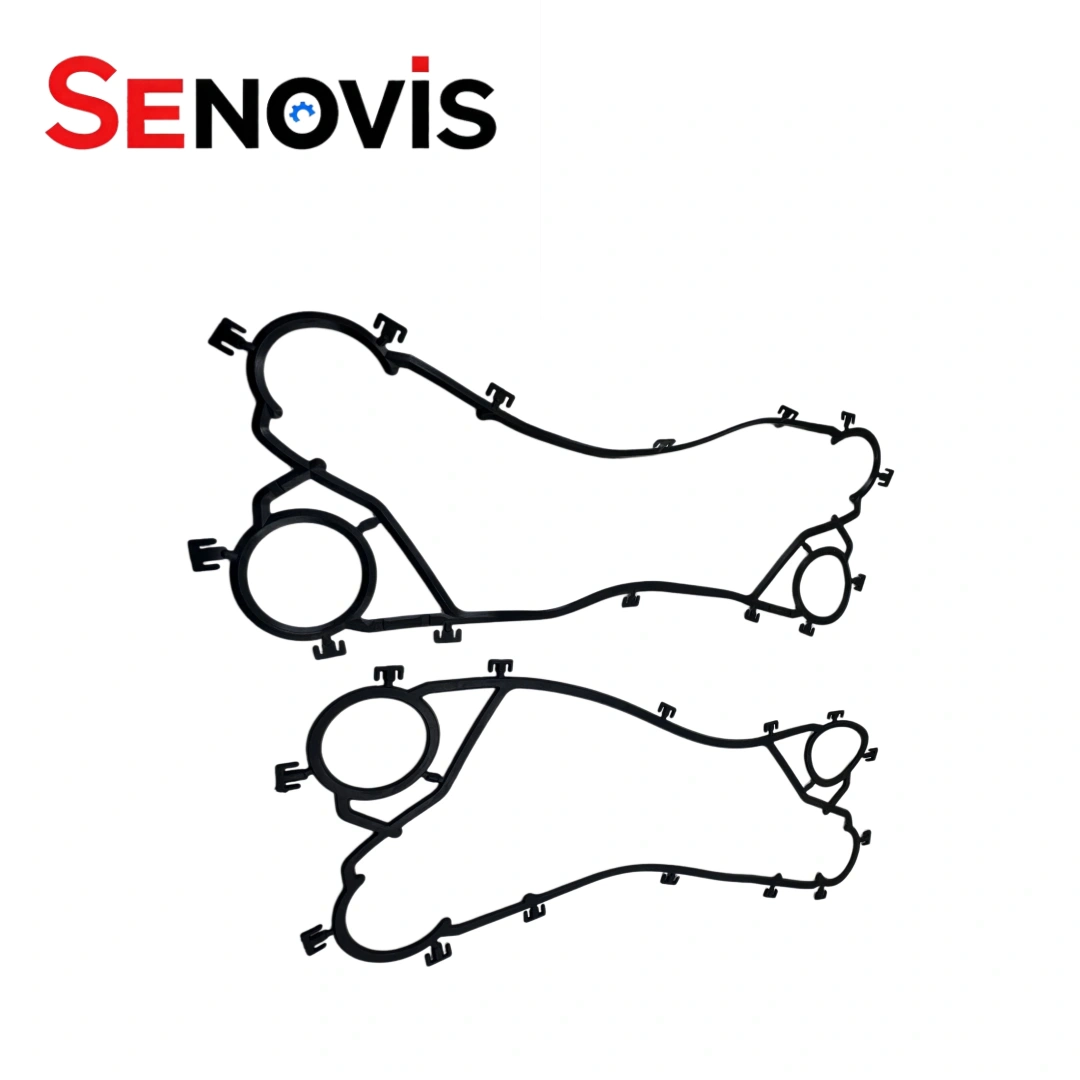

PHE gasket Alfa Laval AK20 plate heat exchanger sealing component industrial application — Gasket component engineered for Alfa Laval AK20 PHE systems

Alfa Laval Ak20 Heat Exchanger Plates And Gaskets

The alfa laval ak20 gasket is designed for alfa laval heat exchanger gasket replacement projects. As a reliable gasket used in heat exchanger systems, it supports proper sealing and heat transfer. Manufactured from suitable gasket material for plate heat exchanger, it is widely applied in industrial maintenance and servicing.

alfa laval AK20 details

PHE Model

Alfa Laval AK20 PHE Gasket

Keyword

Plate Heat Exchanger Gasket Replacement

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

NBR/HNBR/SIL/EPDM/FVMQ/AFLAS/FKM/FFKM/EPDM, etc.

Usage

Refrigeration Equipment

Medium

Steam-liquid

DESCRIPTION

As a plate heat exchanger technician, I focus on alfa laval heat exchanger gasket replacement solutions for the alfa laval ak20 model used in industrial systems. These alfa laval gaskets are developed to match plate configurations, ensuring stable sealing and efficient heat transfer during operation. The AK20 gasket is part of common heat exchanger gasket types, designed for reliable performance under varying process conditions. It is widely used in maintenance and refurbishment projects, helping reduce leakage risks and maintain system stability across industries such as energy, food processing, and chemical production.

Alfa Laval AK20 Gasket Replacement Specification

PHE Model	Alfa Laval AK20 PHE Gasket
Hardness Range	20-90 Shore A
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip-on, Glue-on, Hang-on, Snap-on
Usage	Refrigeration Equipment
Process	Mold making, vulcanization
Keyword	Alfa Laval Gasket

Alfa Laval Plate heat exchanger GASKETS MATERIALS

ANSI/ASTM Designation	EPDM	FKM	HNBR	NBR	VMQ
Low Temp	-40°F	-10°F	-22°F	-30°F	-80°F
High Temp	300°F	400°F	300°F	250°F	420°F
Durometer Shore A	30-90 Shore A	50-95 Shore A	55-95 Shore A	20-100 Shore A	25-85 Shore A
Abrasion	Good- Excellent	Good	Good-Excellent	Good-Excellent	Poor
Adhesion	Good- Excellent	Fair-Good	Excellent	Excellent	Excellent
General Properties	Excellent ozone, chemical,and aging resistance. Poor resistance to petroleum- based fluids.	Excellent oil and air resistance both at low and high temperatures. Very good chemical resistance.	Excellent heat and oil resistance, improved fuel and ozone resistance (approximately 5X) over Nitrile Good abrasion resistance Decreased elasticity at low temperatures with hydrogenation over standard nitrile.	Excellent resistance to petroleum-based fluids.Good physical properties.	Excellent high and low temperature properties.Fair physical properties.
Resistant to:	Animal and vegetable oils, ozone,strong and oxidizing chemicals.	A11 aliphatic, aromatic and halogenated hydrocarbons, acids,animal and vegetable oils.	Many hydrocarbons, transmission fluids, refrigerants,diluted acids,hydraulic fluids,silicone oils, vegetable and animal fats and oils, water and steam.	Many hydrocarbons, fats,oils,greases, hydraulic fluids, chemicals.	Moderate or oxidizing chemicals,ozone, concentrated sodium hydroxide.
Attacked by:	Mineral oils and solvents, aromatic hydrocarbons.	Ketones,low molecular weight esters and nitro containing compounds.	Chlorinated hydrocarbons, ketones,strong acids.	0zone(except PVC blends), ketones,esters, aldehydes, chlorinated and nitro hydrocarbons.	Many solvents, oils, concentrated acids,dilute sodium hydroxide

Actual Product Details

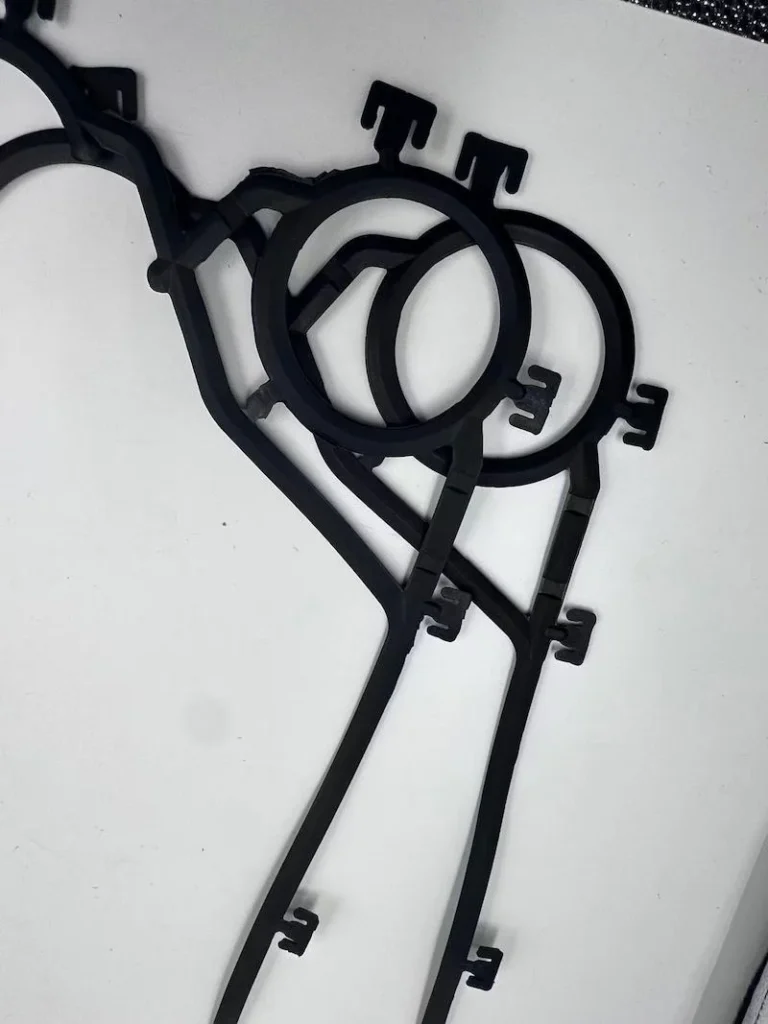

Alfa Laval AK20 gasket channel design sealing edge PHE component detail — Sealing edge and channel design for precise plate alignment

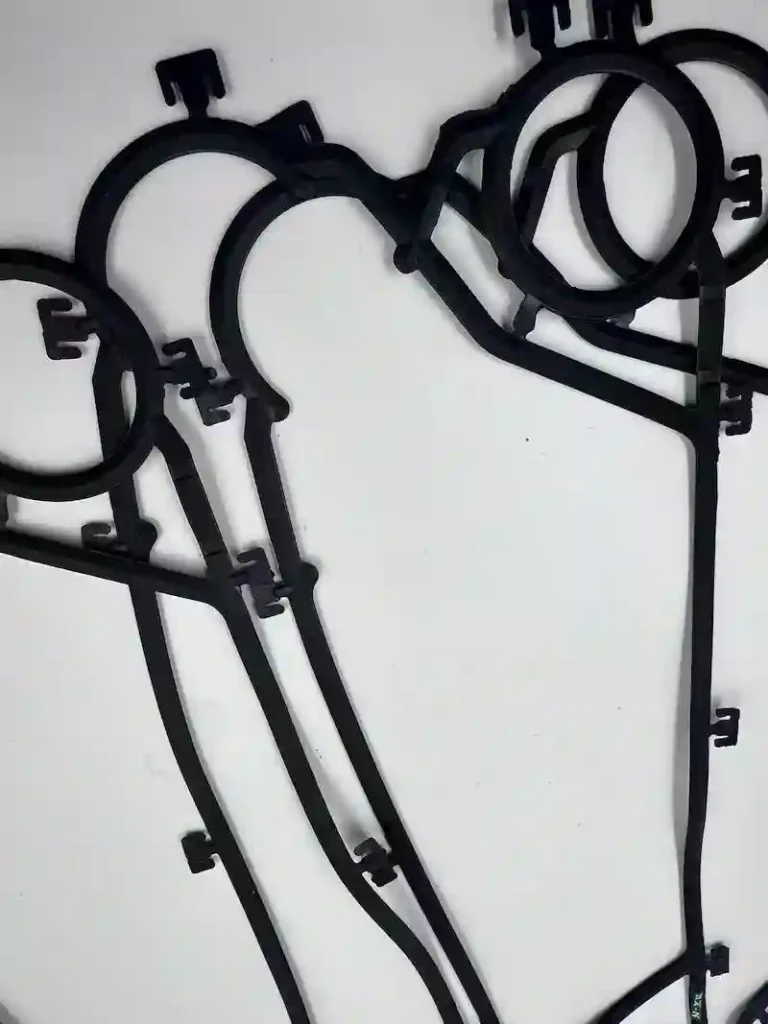

AK20 plate heat exchanger gasket installation fit detail PHE sealing alignment — Gasket fitting detail for Alfa Laval AK20 plate heat exchanger

Workshop of Plate Heat Exchanger Factory

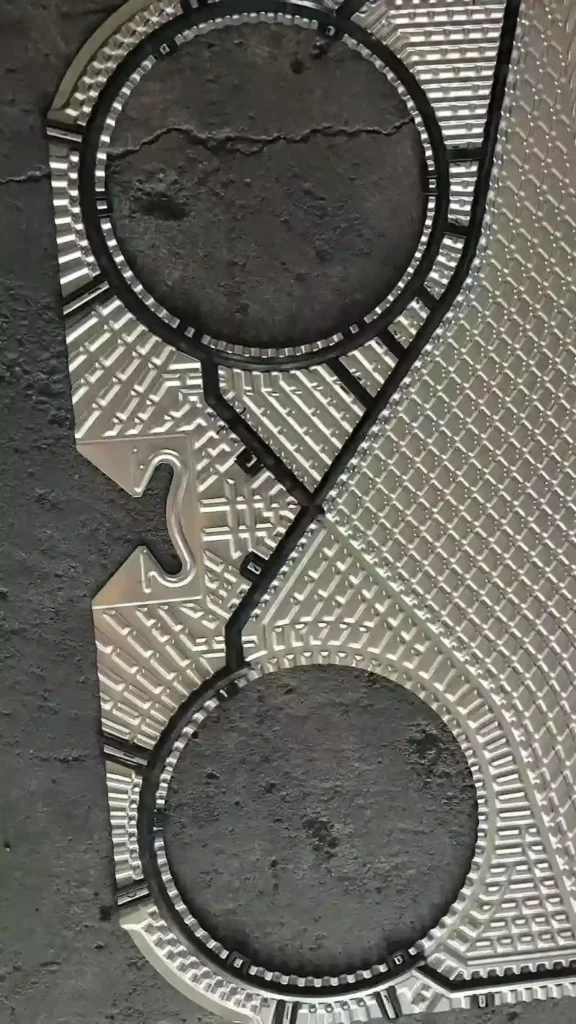

plate heat exchanger gasket AK20 real product in factory environment industrial sealing part — Actual product view of AK20 gasket in factory setting

faq

Do you support OEM/ODM and custom branding?

Yes, full customization available. We support custom materials (Copper, SS304/316, Cu-Ni) and offer Laser Marking u0026amp; Nameplates to feature your logo perfectly.

Worry about your money?

Trade Assurance can protect your money. (more information, pls contact me)

Are you trading company or manufacturer ?

We are factory.specilizing in heat exchanger for over 10 years.

Are your products customized?

Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
