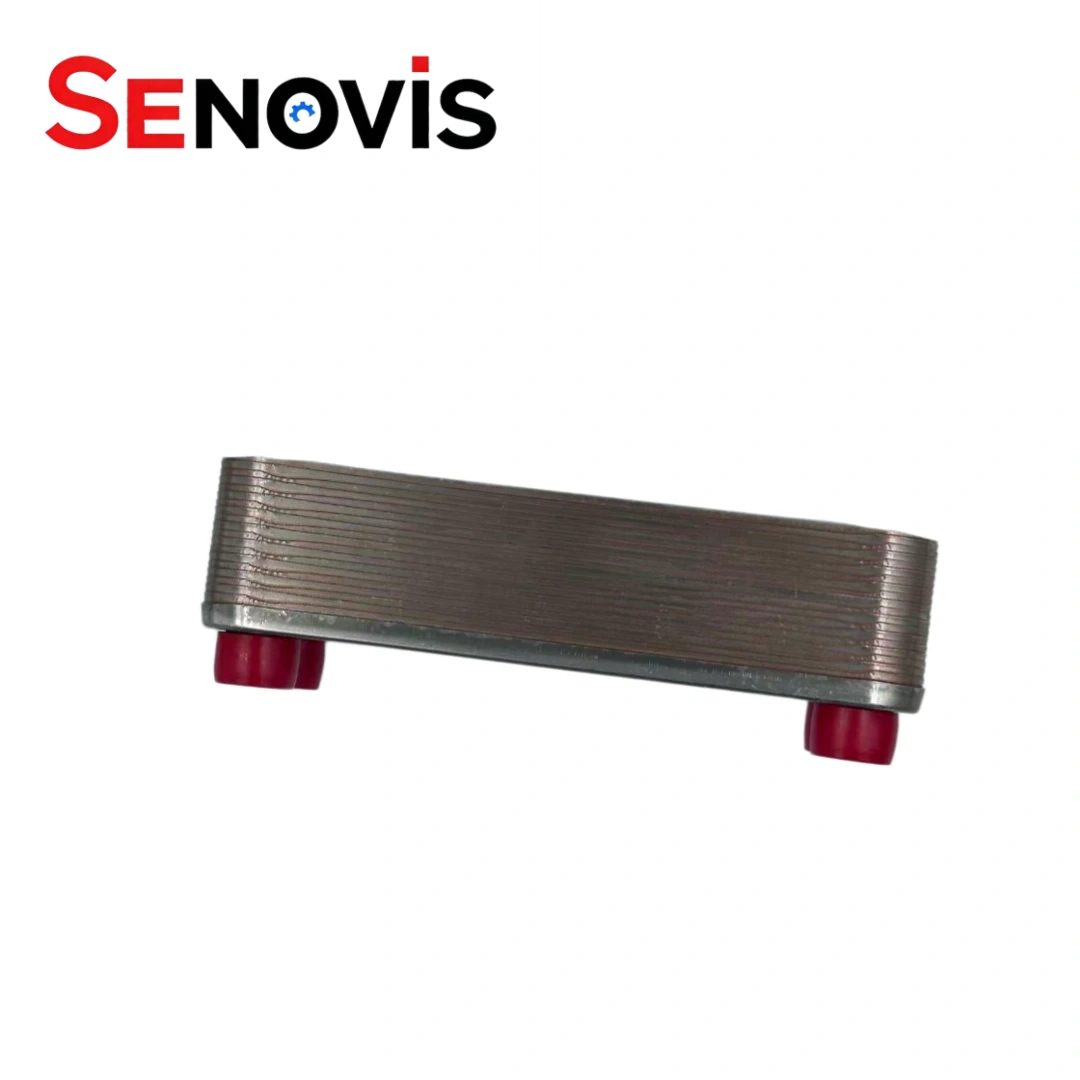

Kaori K800 brazed plate heat exchanger BPHE external unit design — Kaori K800 brazed plate heat exchanger for industrial heat transfer systems.

Kaori K800 Kaori Plate Heat Exchanger Brazed Plate Evaporator

Our factory offers the Kaori K800 BPHE Brazed plate heat exchanger(bphe) for high-flow industrial use. Featuring a Dimension LWH of 772 * 313 mm, this unit supports a Capacity up to 450 KW. Built with 316L stainless steel, it handles a Designed Pressure of 45 bar. Optimize your thermal systems with our precision-engineered BPHE solutions today.

Kaori K800 details

BPHE Model

Kaori K800 BPHE

Keyword

Alfa Laval BPHE

Application

Heating or cooling

Brazing material

Nickel Titanium or Copper

Medium

Steam-steam.liquid-liquid

Usage

Hvac Air Conditioner System

Fluid Compatibility

Oil

Capacity

Up to 450 KW

Other Models

Kaori Model: K040, K060, K100, K200, K300, K500, K800

DESCRIPTION

Procust overview:

Our factory specializes in high-capacity thermal solutions, providing the Kaori K800 BPHE Brazed plate heat exchanger(bphe) for demanding industrial applications. This robust unit features an expansive Dimension LWH of 772 * 313 mm, designed to manage a significant Capacity up to 450 KW. Engineered with a Plate Number capability up to 220, the K800 utilizes a wider 2.85 mm plate pitch to optimize high-volume flow and minimize pressure drops. With a Designed Pressure reaching 45 bar and a Designed Temperature range of -196°C to 200°C, this BPHE is ideal for district heating and large-scale cooling. The unit’s Weight starts at a base of 26.6 kg, reflecting its heavy-duty 316L stainless steel construction. As a leading manufacturer of heat exchanger components, we deliver high-performance Brazed plate heat exchanger(bphe) technology that ensures precise thermal regulation for global energy systems.

Technical Highlights:

Large-Scale Design: The K800 is one of the larger units in the Kaori catalog, featuring a width of 313 mm, which is nearly triple that of the CB30/CB50 series.
Flow Capacity: With a channel volume of 0.95 Liters, it is engineered for high-volume flow tasks such as large-scale industrial cooling and district heating systems.
Construction: The plate pitch is significantly wider at 2.85 mm to handle larger flow rates with optimized pressure drop characteristics.
Heavy-Duty Frame: The base weight (26.6 kg) reflects the heavy-duty reinforcement required for high-pressure operations in a large-format unit.

Kaori K800 BPHE Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Kaori K800 BPHE
Keyword	Swep Heat Exchanger
Plate Number	N (Max 220)
Thickness A (mm)	2.85 * N + 15.0
Dimension LWH (mm)	772 * 313
Center Distance (mm)	622 * 163
Weight (kg)	1.13 * N + 26.6
Volume (L) Q1Q2 Side / Q3Q4 Side	0.95 * (N-2)/2 / 0.95 * N/2
Designed Pressure	30 bar / 45 bar (Standard/S-Type)
Designed Temperature	-196℃ ~ 200℃
Slad Materials	316L Stainless Steel
Capacity	Up to 450 KW

SWEP B Series Replacement Cross Reference

SWEP Model	Typical Application	Equivalent Alfa Laval	Equivalent Danfoss	Kaori Equivalent
B3	Micro HVAC / heat pumps	CB14	XB05	K040
B5	Small HVAC systems	CB18	XB06	K060
B8	Residential HVAC	CB20	XB10	K100
B10	Light commercial HVAC	CB20 / CB26	XB10 / XB12	K100 / K200
B12	Heat pumps / chillers	CB26	XB12	K200
B25	Commercial HVAC	CB30 / CB50	XB37	K300
B35	Medium industrial	CB50	XB37 / XB51	K500
B50	Industrial HVAC	CB60	XB51 / XB60	K500 / K800
B65	Heavy duty systems	CB60 / CB110	XB60	Custom
B80	Large industrial	CB110	XB100	Custom

Actual Product Details

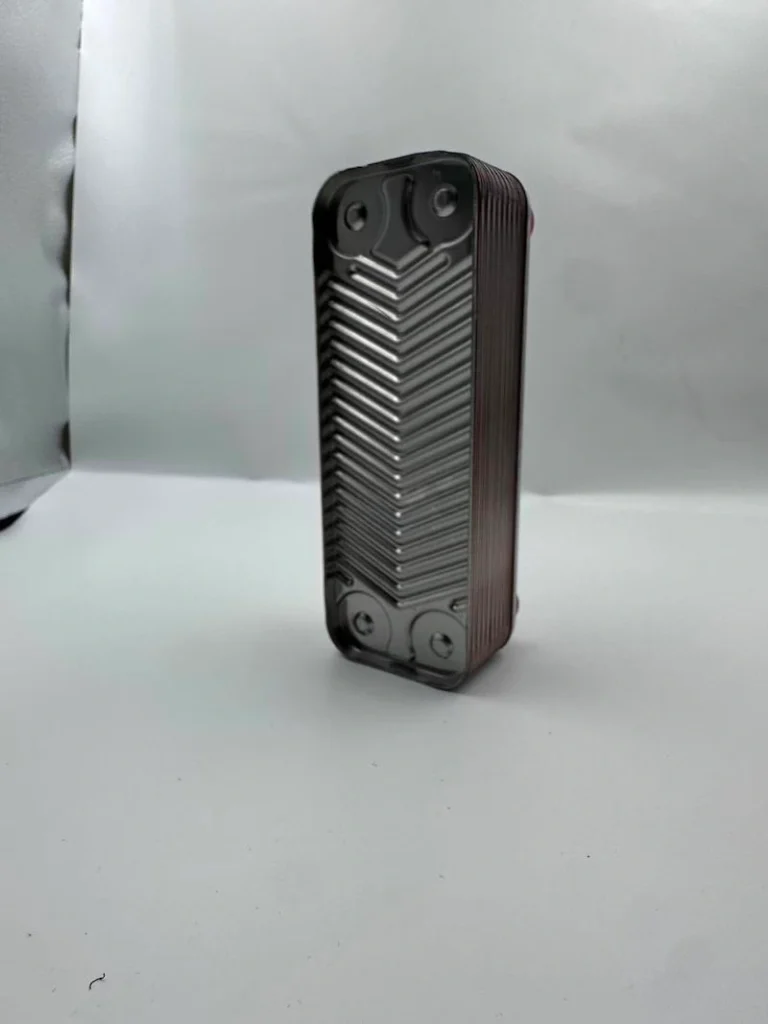

Kaori K800 BPHE internal channel layout and plate surface detail — Optimized plate surface to improve fluid mixing and heat transfer.

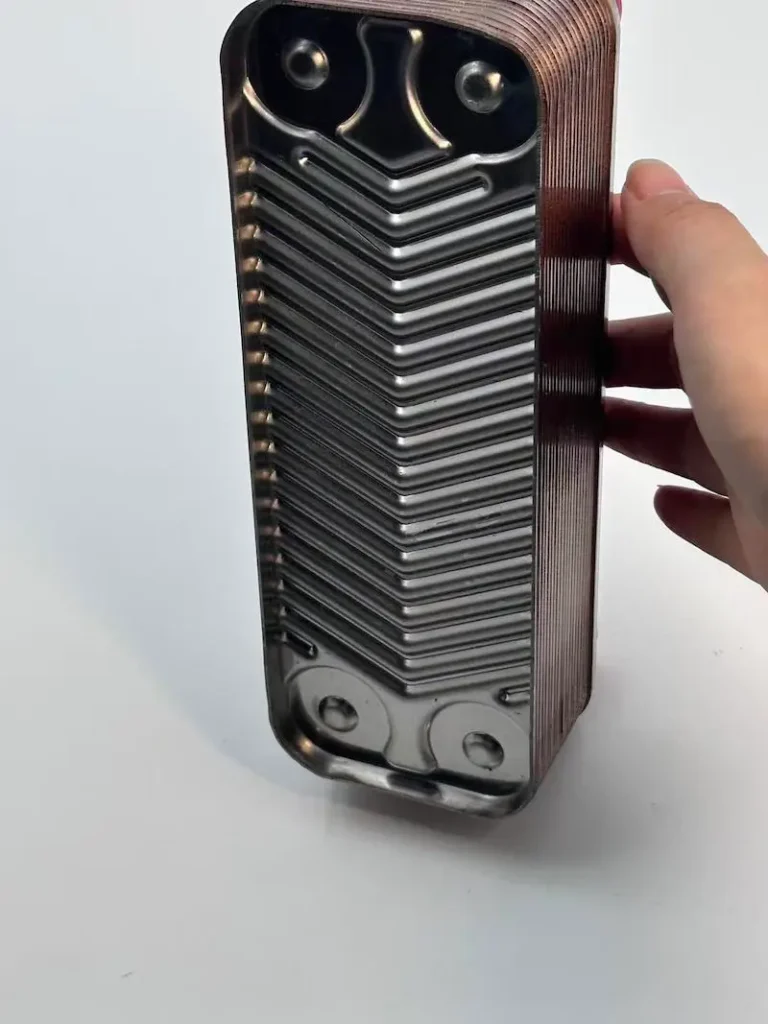

Kaori K800 brazed plate heat exchanger welding seam and joint detail — Close view of brazed connections forming a sealed exchanger core.

Workshop of Plate Heat Exchanger Factory

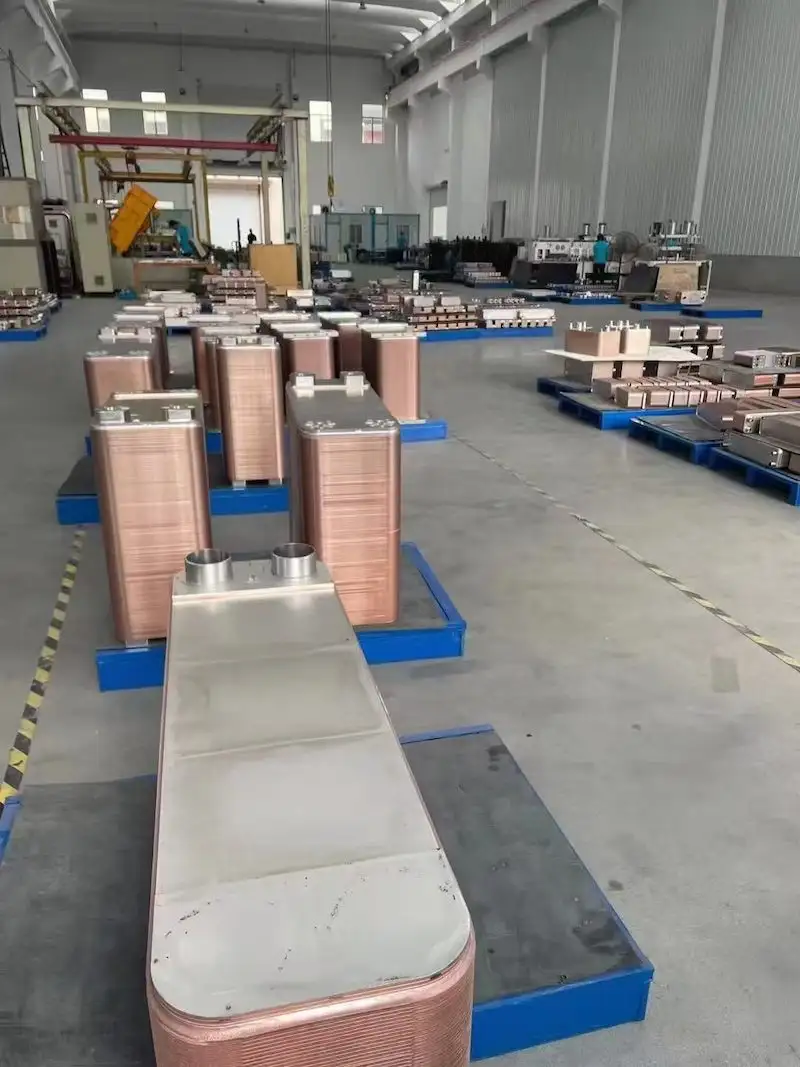

Kaori K800 BPHE production workshop and assembly line process — Production process of brazed plate heat exchangers in industrial workshop.
